LED STRIP LIGHT

ECN-T1616 Top Bend Ribbon Lighting Silicone Neon LED Strip Lights

. Top bend, 16mm luminous surface, applicable to signage, indoor and
outdoor decoration lighting, building structure decoration lighting.
. Dual-color silicone extrusion process with cutting mark clearly visible
. High luminous efficiency, LM80 proved, IP65
. 3 years warranty, life span over 36000 hours
. Cutting position, convenient and accurate cutting of any length


Product Detail

Product Tags

Brief Introduction

Top bend series neon LED strip, bending direction: vertical. This series adopt environmental silicone material, up to IP67 protection level. High light transmission, can be used for sign lighting, indoor and outdoor decorative lighting and architecture contour lighting molding.

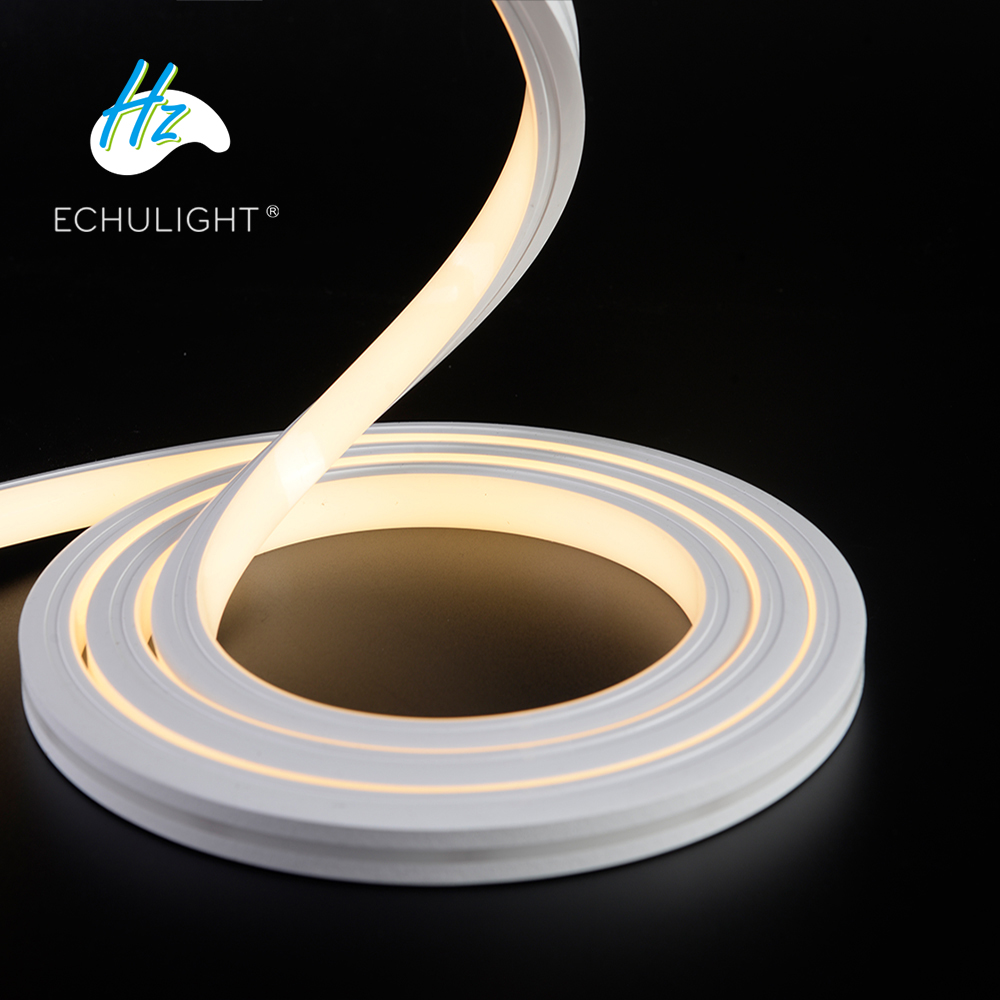

ECN-T1616-Top-Bend-Ribbon-Lighting-Silicone-Neon-LED-Strip-Lights-01

ECN-T1616 Top Bend-01

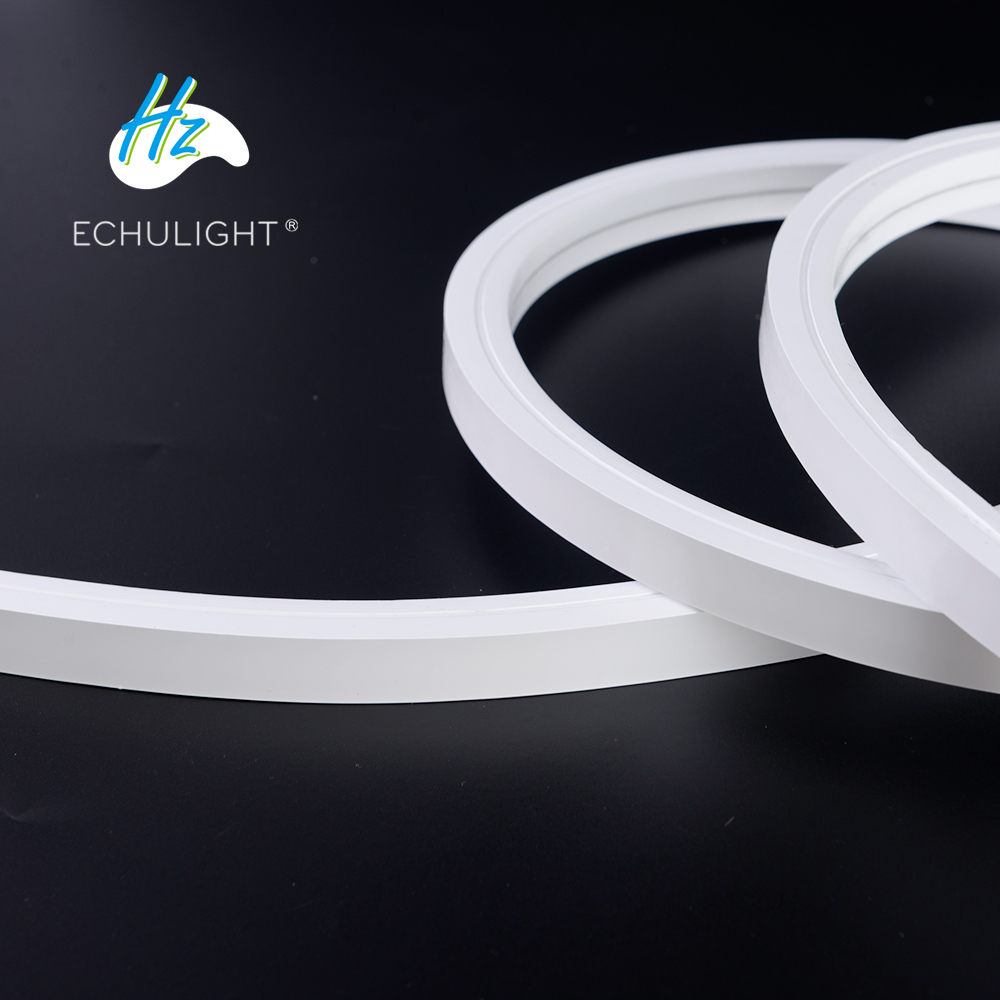

ECN-T1616 Top Bend Ribbon Lighting Silicone Neon LED Strip Lights 06

ECN-T1616 Top Bend-02

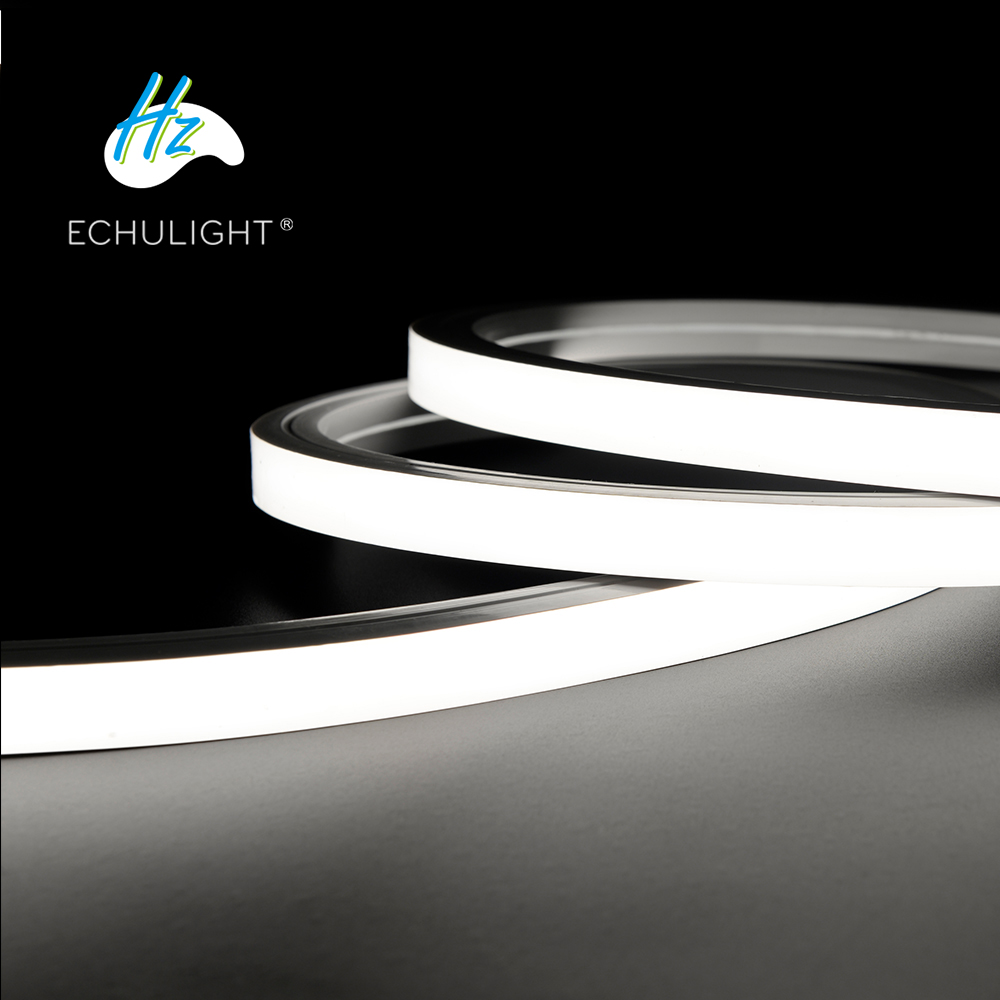

ECN-T1616-Top-Bend-Ribbon-Lighting-Silicone-Neon-LED-Strip-Lights-05

ECN-T1616 Top Bend-03

Features and advantages of Silicone Neon LED Strip

A.High substitutability
Silicone neon strip lights featuring high substitutability, all neon strip can achieve various lighting effects such as white light, RGB and digital toning, it can replace the neon tube, guardrail tube, rainbow tube and so on for signage lighting/architectural lighting/landscape lighting.
B.High thermal conductivity
High thermal conductivity, the thermal conductivity of silicone is 0.27W/MK, better than the “0.14W/MK” of PVC material, and the light strip features longer effective heat dissipation life.
C.Resistance to UV
Neon light strips featuring resistance to UV, the extrusion silicone can be used outdoor environment for long-term exposure to direct sunlight, no yellowing and aging over 5 years.
D.Flame-retardant and environmental
Neon strip is environmental and non-toxic, with high ignition point, non-flammable in needle-flame burning, and without irritating toxic gases volatilizing (not like PVC), which is more secure.
E.Resistance to corrosive gases
Neon led strip lights are resistance to corrosive gases, include chlorine, sulfur dioxide, hydrogen sulfide, nitrogen dioxide and so on, the silicone neon strip with long life span can be used for severe environment
F.Dust proof
Avoid dust into the neon strip, and featuring reliable sealing, up to IP6X, beautiful appearance, wide range of applications and long-life span.
G.Uniform Lighting
Uniform Lighting, dot-free, direct-view surface, used for highly reflective material, featuring a glossy environment free from dazzling.
H.High light transmittance
Neon light strips with high light transmittance up to 90%, can meet the requirements of high lumens output, and it’s not only used for decoration but also lighting.
I.Good flexibility
Reliable structure with good flexibility, adopting solid silicone, customizing internal structure and external form by mould. Neon led strip can be bent and twisted, suitable for various shapes, with resistance to tear and draw, it is not easy to damage and deform with good flexibility.
J.Outstanding weather resistance
Outstanding weather resistance, storing in the environment between -50℃ and +150℃ , neon strip can maintain the normal-soft state, without embrittlement, deformation, softening and aging. And using in the environment between -20℃ and +45℃ , neon led strip lights can operate normally resisting extremely cold and high heat.
K.Resistance to corrosion
Neon light strips featuring resistance to corrosion, the silicone can resist corrosion of normal salt, alkali and acid, can be used for special environments such as beach, yacht, chemical industry, petroleum, mine and laboratory.
L.Good protective performance
Good protective performance,the main body of neon led strip and standard outlet end cap can be used in the environment up to IP67 standard, and can pass the laboratory test standards of IP68

LED Neon Strip

Basic Parameters

Note:

1. The above data is based on the testing result of 1meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

CCT/Color Options

led neon strip light top bend

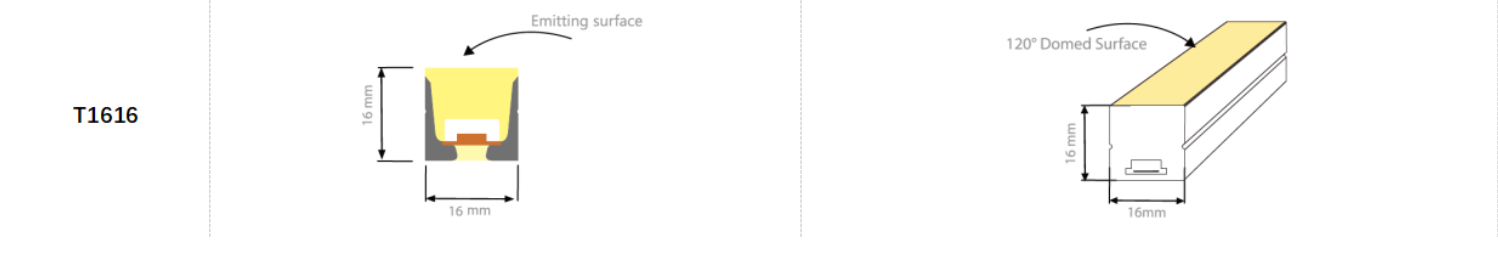

Structure Specification

led silicone light

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Cutting Method

led neon light3

Installation Instructions

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

System Solutions

LED NEON LIGHT

FAQ

1.What kind of chips do we use for LED light?
We mainly use brand LED chips, such as Cree, Epistar, Osram, Nichia.
2.What are the main products of ECHULIGHT company?
Our main products include LED strip, NEON LED strip and Linear Profile System.
3.Can I have a sample order for LED strip?
Certainly, you are warmly welcome to request sample from us for test and check the product quality.
4.What’s the lead time of our company?
Generally sample order takes 3-7 days and mass production takes about 7-15 days.
5.How do we ship the goods overseas?
Usually, we ship the commodities by express such as DHL, UPS, FedEx and TNT. For bulk orders we ship by air and by sea.
6.Do you accept OEM/ODM orders?
Yes, we accept customized orders and we provide a wide range of customization factors.
7.What kind of guarantee do you offer for the products?
Generally, we offer 2-5 years of warranty for most of our products and special warranty are available for special orders.
8.How does your company deal with the complaints?
All our products are produced under strict quality control system and defective rate will be less than 0.2%.
For all the products bought from us, we offer you free warranty during the guarantee period.
For all claims, no matter how it happens, we solve the problem first for you and then we check about the duty.
