LED STRIP LIGHT

ECN-S0612 (Side bend)Ribbon Lighting Silicone Neon Strip Lights

. Side bend, 6mm luminous surface, applicable to signage & indoor
decoration lighting
. Dual-color silicone extrusion process with cutting mark clearly visible
. High luminous efficiency, LM80 proved, IP65
. 3 years warranty, life span over 36000 hours


  • :
  • Product Detail

    Product Tags

    Brief Introduction

    Silicone Neon Strip is made by adopting dual color silicone integrated extrusion shaping process.

    Its protection grade reaches up to IP67/IP68, featuring resistances to saline solutions, acid & alkali, corrosive gases, fire and UV.

    Silicone Neon Strip is widely used in indoor and outdoor molding decoration, building outlines, city night scenes illuminating

    and so forth for the sake of the effect of decorative lighting.

    媒体信息

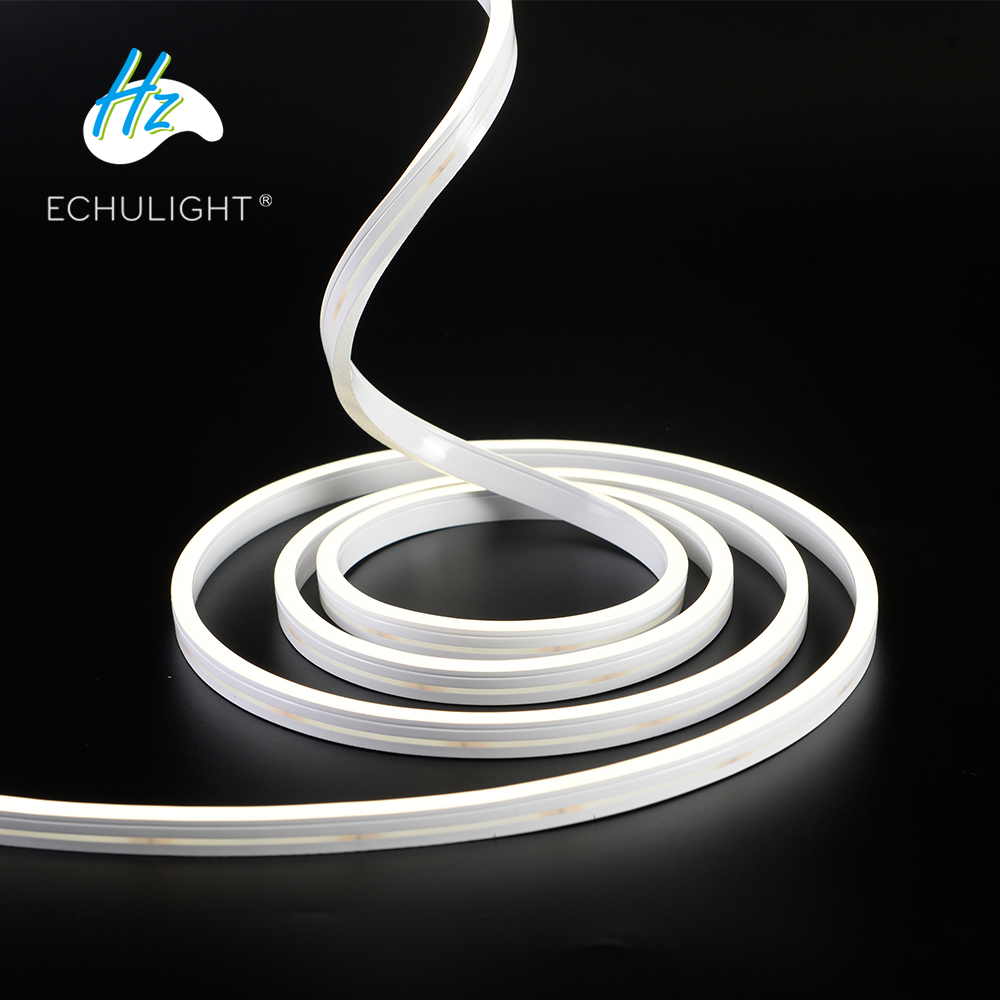

ECN-S0612-Side-bendRibbon-Lighting-Silicone-Neon-Strip-Lights-01

    ECN-S0612 (Side bend)01

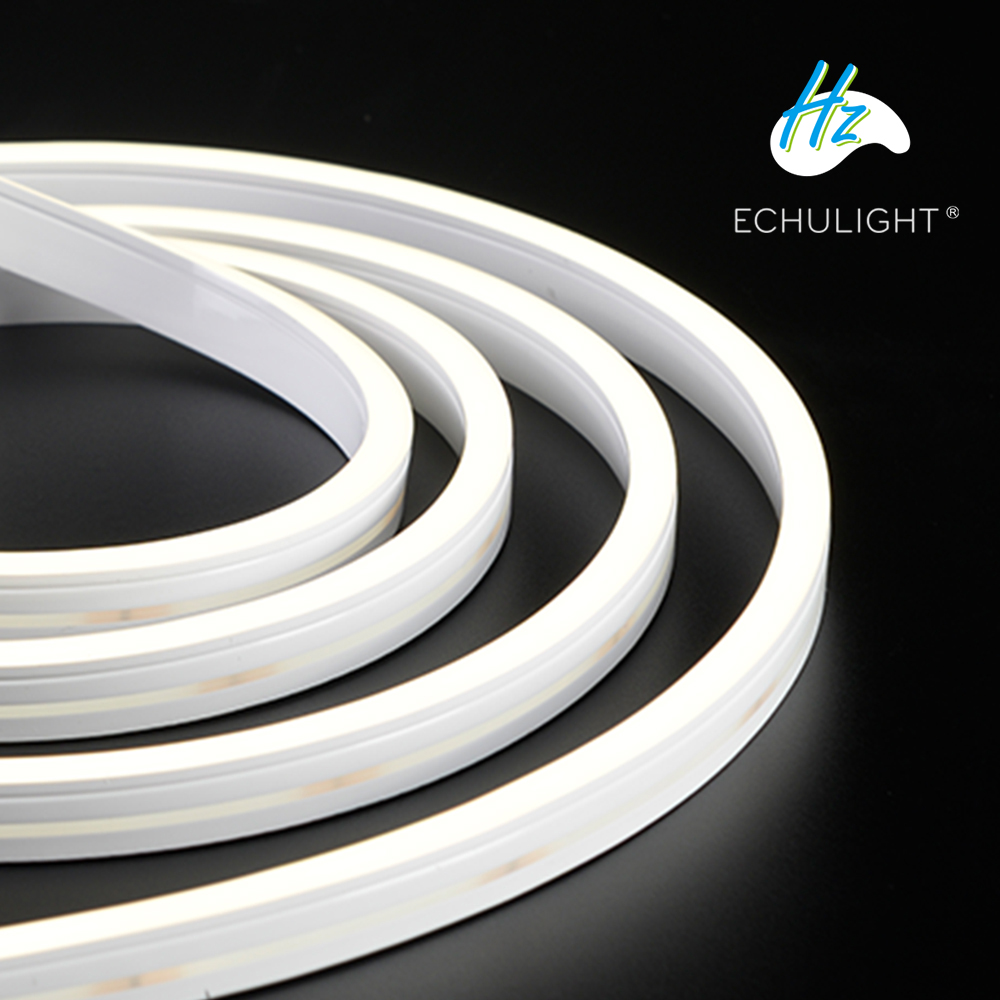

    ECN-S0612-Side-bendRibbon-Lighting-Silicone-Neon-Strip-Lights-02

    ECN-S0612 (Side bend)02

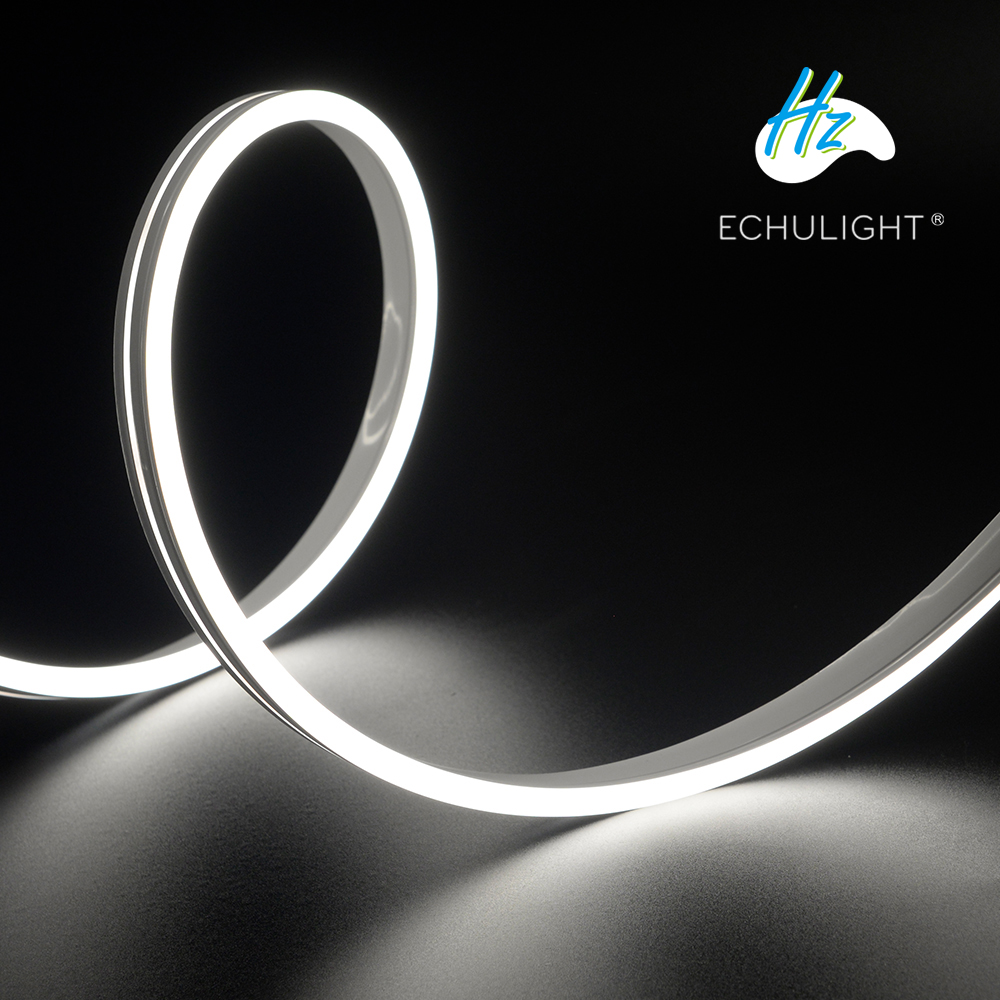

    ECN-S0612 (Side bend)Ribbon Lighting Silicone Neon Strip Lights 05

    ECN-S0612 (Side bend)03

    Basic Parameters

    Note:

    1. The above data is based on the testing result of 1meter standard product.

    2. The power and lumens of output data can be varied up to ±10%.

    3. The above parameters are all typical values.

    CCT/Color Options

    led silicone light rgb

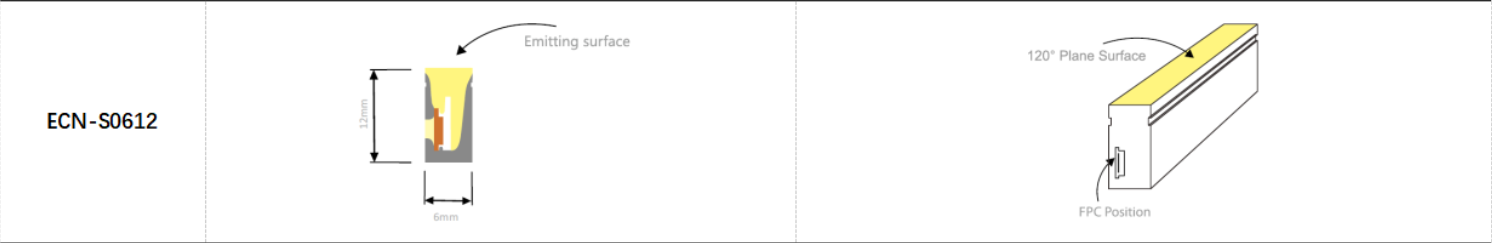

    Structure Specification

    LED NEON STRIP

    Cutting Method

    led linear light

    Installation Instructions

    System Solutions

    LED NEON LIGHT

    Applications

    1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

    2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

    3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

    4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

    5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

    6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

    7. City beautification, landscape design, holiday decoration and so on.

    Warning:

    1. Supply voltage of this product is DC24V; never connect to other higher voltage.

    2. Never connect two wires directly in case of short circuit.

    3. Lead wire should be connected correctly according to colors that connecting diagram offers.

    4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

    Precautions

    ※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

    ※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

    ※ Do not fold it in case any damage of LED beads.

    ※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

    ※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

    ※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.

    Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.

    ※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

    ※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

    ※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
