ECN-S1317 (Side bend)Ribbon Lighting Silicone Neon Strip Lights

. Top bend, 13mm luminous surface, applicable to signage, indoor and

outdoor decoration lighting, building structure decoration lighting

. Dual-color silicone extrusion process with cutting mark clearly visible

. High luminous efficiency, LM80 proved, IP65

. 3 years warranty, life span over 36000 hours

Send email to us

Product Detail

Product Tags

Brief Introduction

Silicone Neon Strip is made by adopting dual color silicone integrated extrusion shaping process.

Its protection grade reaches up to IP67/IP68, featuring resistances to saline solutions, acid & alkali, corrosive gases, fire and UV.

Silicone Neon Strip is widely used in indoor and outdoor molding decoration, building outlines, city night scenes illuminating

and so forth for the sake of the effect of decorative lighting.

ECN-S1317-Side-bendRibbon-Lighting-Silicone-Neon-Strip-Lights01

ECN-S1317 (Side bend)01

ECN-S1317-Side-bendRibbon-Lighting-Silicone-Neon-Strip-Lights05

ECN-S1317 (Side bend)02

ECN-S1317 (Side bend)Ribbon Lighting Silicone Neon Strip Lights 03

ECN-S1317 (Side bend)03

Basic Parameters

Note:

1. The above data is based on the testing result of 1meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

CCT/Color Options

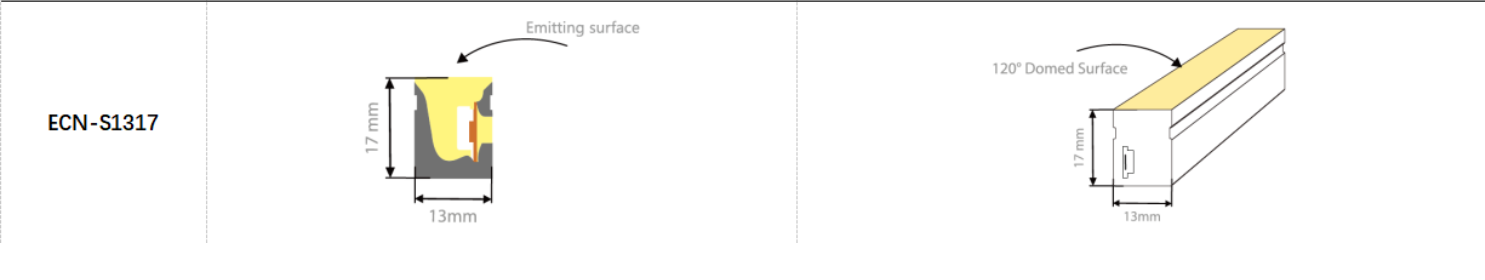

Structure Specification

Cutting Method

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Installation Instructions

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

System Solutions

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

※ Do not fold it in case any damage of LED beads.※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to

avoid damage.

※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.

Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.

※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
