ECS-B60RGB-24V-10mm Flexible RGB LED Strip Lights SMD5050 LED

Basic parameters
Size 5000×10×2.1mm
Leds/m 6LEDs/100mm
Cutting unit 60LEDs/m
Input voltage 24VDC
Input current 0.6A/m&3A/5m
Typ.power 13.5W/m
Max.power 14.4W/m
Beam angle 120°
Copper foil 2OZ


Product Detail

Product Tags

Brief Introduction

Toning series of led strip can meet the requirements of CCT changing in the same space during different periods for different users. It contains toning LED strip with dual white light, the RGB LED strip features color changing, the RGBW LED strip, and the digital LED strip features dynamic color changing. The series is widely compatible with all kinds of dimming &toning controllers. Toning series is widely used for residential space, showcasing space, entertainment space, bar, KTV, and hotel, to achieve decorative lighting, atmosphere creation and scenarios changing in holidays. Such as led light strips for room, led strip lights for ceiling, led strip lights for bedroom, RGB led strip, hue light strip, RGB light strip, RGB strip, RGBW led strip, rgbic led strip, color changing led strip lights, multi colored led strip lights etc.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.

ECS-B60RGB-24V-10mm Flexible RGB LED Strip Lights SMD5050 LED 03

ECS-B60RGB-24V-10mm-01

ECS-B60RGB-24V-10mm-Flexible-RGB-LED-Strip-Lights-SMD5050-LED-013

ECS-B60RGB-24V-10mm-02

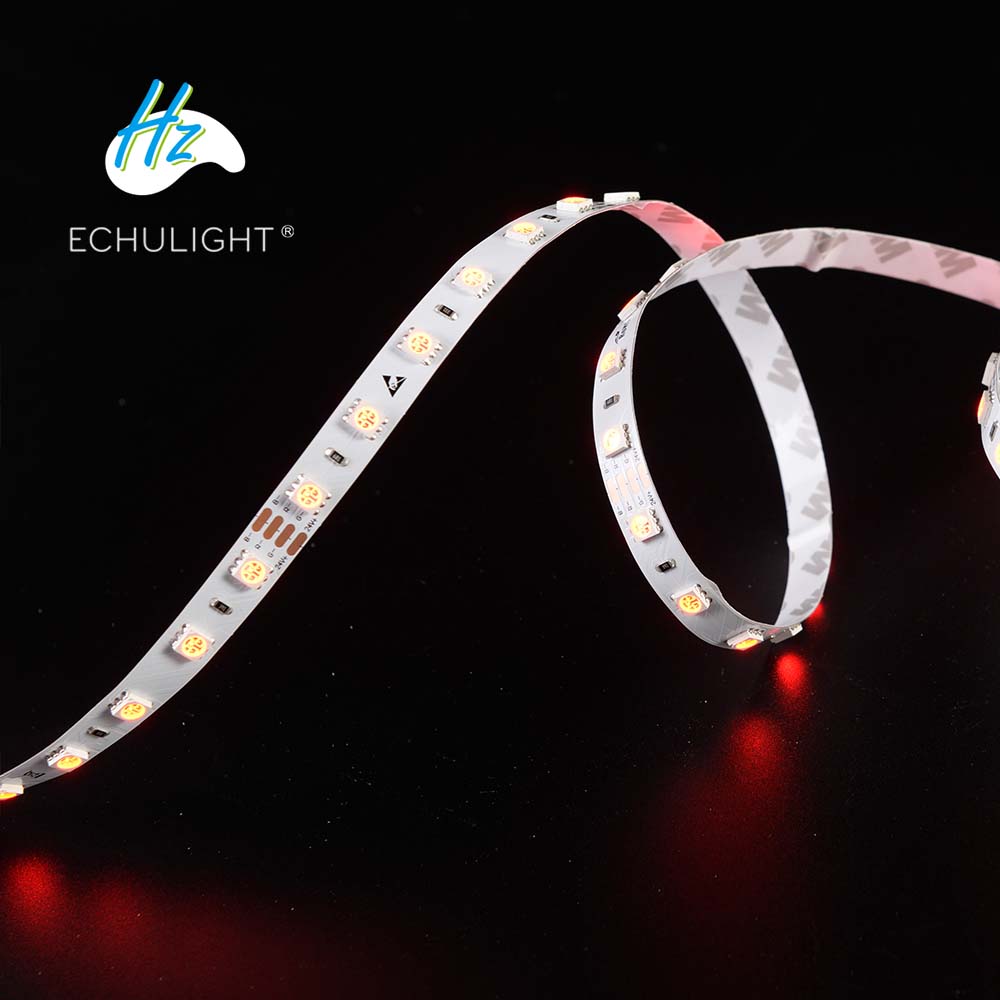

ECS-B60RGB-24V-10mm-Flexible-RGB-LED-Strip-Lights-SMD5050-LED-05

ECS-B60RGB-24V-10mm-03

Basic Parameters

Model Size Input Current Typ.Power Max.Power Beam Angle Copper Foil
ECS-B60RGB-24V-
10mm
5000×10×2.1mm 0.6A/m & 3A/5m 13.5W/m 14.4W/m 120° 2OZ

Note:

1. The above data is based on the testing result of 1 meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

Products Specification

Model LEDs/m DC(v) Preview Cutting Unit
(leds/mm)
Power
(w/m)
FPC Width
(mm)
Warranty
(year)
ECS-B60RGB-24V
-10mm
60 24   6/100 14.4 10 3

IP Process Options

led rgb strip

CCT/Color Options

RGB

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

Installation Instructions

led rgb strip  light

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

※ Do not fold it in case any damage of LED beads.

※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.

Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.

※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
