ECDS-C120-24V-12MM(SMD2835) Ultra-long Flexible LED Strip

Basic parameters
Size 20000×12×1.5mm
Leds/m 120LEDs/m
Cutting unit 6LEDs/50mm
Input voltage 24VDC
Input current 0.363A/m&7.1A/20m
Typ.power 8.7W/m
Max.power 9.6W/m
Beam angle 120°
Copper foil 3OZ


  • :
  • Product Detail

    Product Tags

    Features

    . SMD2835 uminous flux up to 1020LM/m

    . 20m long strip driven by one end power supply with the same

    brightness from end to end

    . FPC uses double side rolled copper; bending resistance

    large current carrying capacity, low light decay and good heat

    dissipation

    . CE/RoHS/UL certified for the products, 3 years warranty

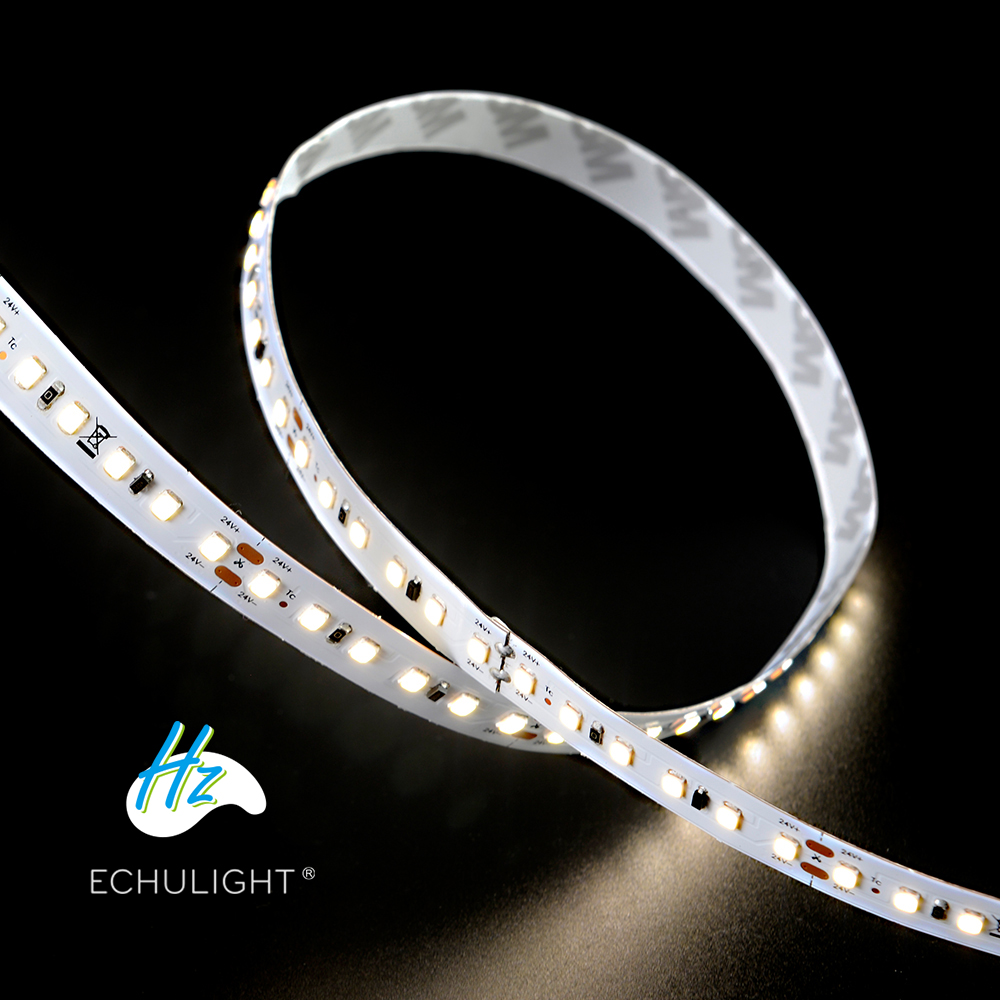

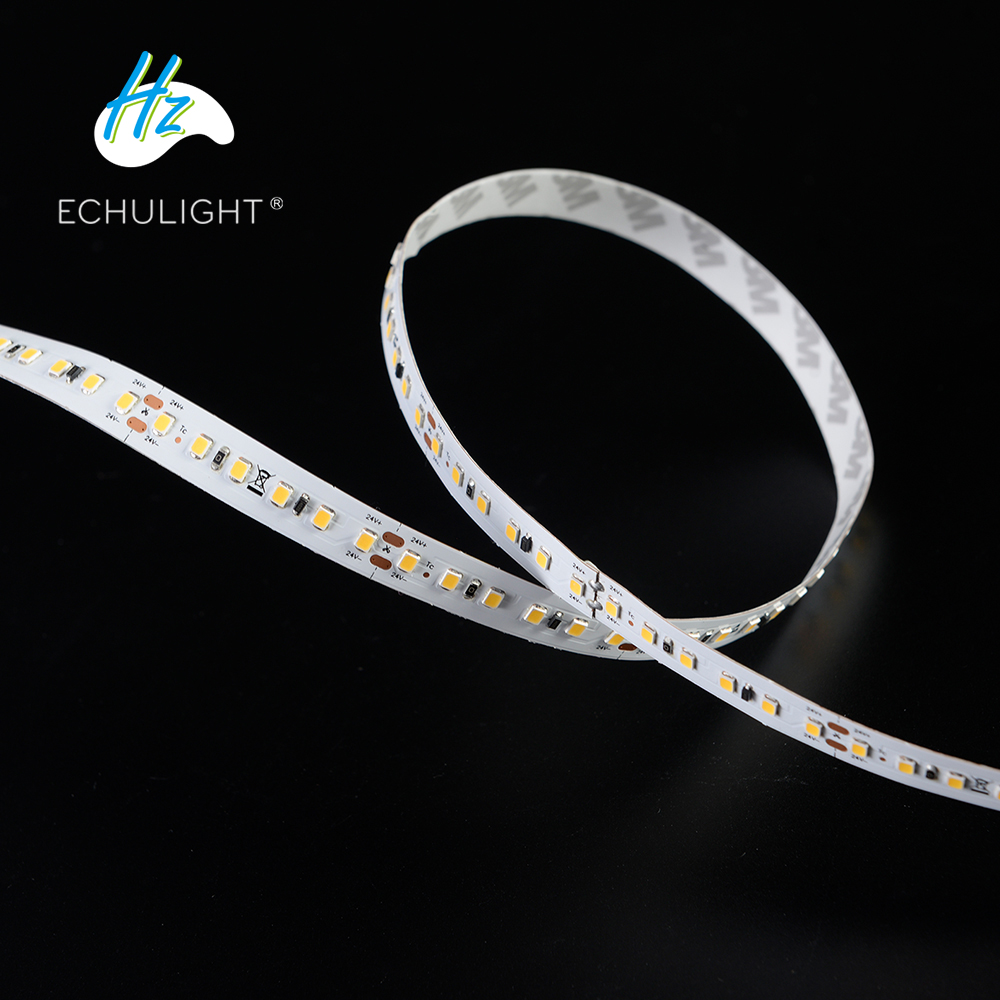

    ECDS-C120-24V-12MM(SMD2835) Ultra-long Flexible LED Strip 01

    ECDS-C120-24V-12MM(SMD2835) 01


    ECDS-C120-24V-12MM(SMD2835) 02

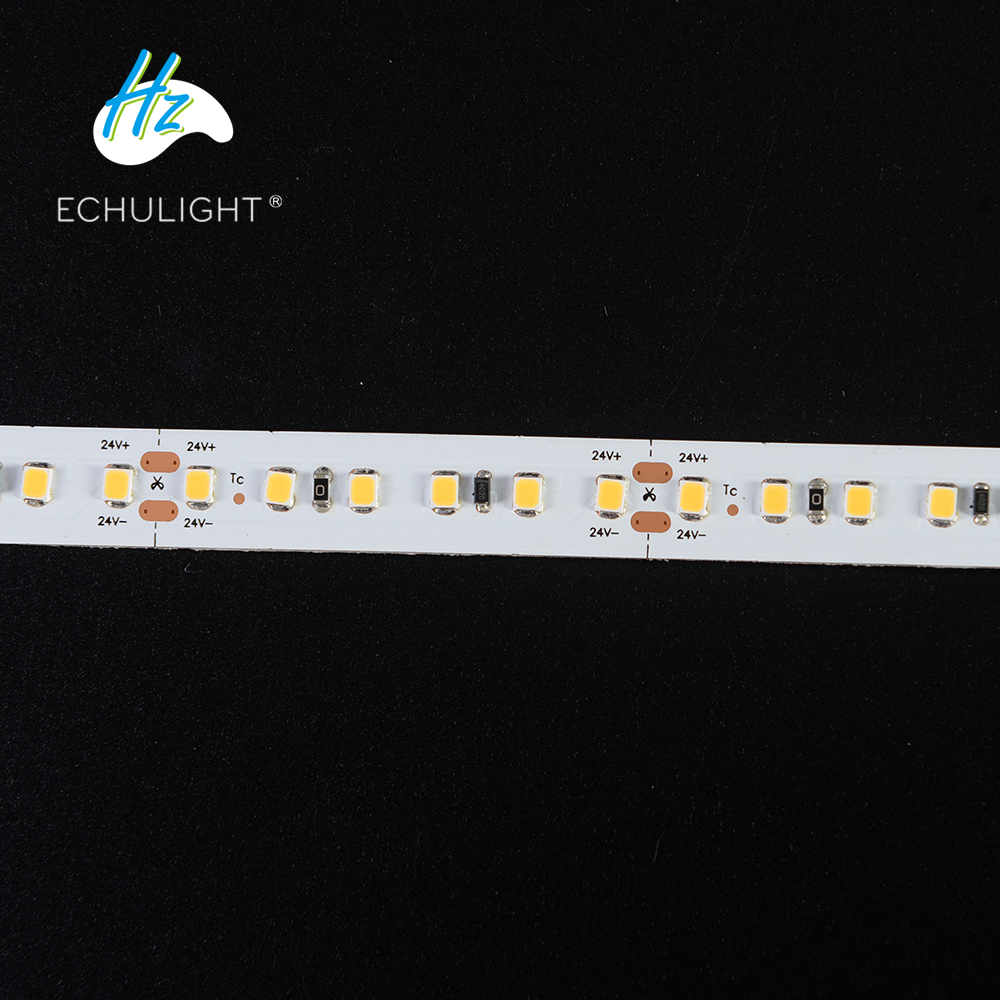

    ECDS-C120-24V-12MM(SMD2835) Ultra-long Flexible LED Strip05

    ECDS-C120-24V-12MM(SMD2835) 03

    Brief Introduction

    Full scene led strip which can help you optimize your products list, reduce the mix color mistake cost, lower the purchasing communication cost, saving the warehouse stock management cost, and better the marketing and sales person product training cost etc.

    Our LED strip provides four series of tape light, including “PRO Series”, “STD Series”, “Toning Series” and “Neon Series”. Customers can select the most suitable led tape in terms of the applications, requirements of functions, projects, and budgets.

    Adheres to independent R&D and sustaining innovation, and our products passed the ISO9001 QMS & ISO14001 EMS certification. All products have passed the testing of the third-party authoritative laboratories and have attained the quality certification from a variety of countries and regions: CE, REACH, ROHS, UL, TUV, LM-80 and so on.

    Photoelectric Parameters

    CRI CCT LM/m LM/W
    >95 2300K 748 78
    2700K 787 82
    3000K 825 86
    3500K 864 90
    4000K 921 96
    5000K 921 96
    6000K 921 96

    Note:

    1. The above data is based on the testing result of 1meter standard product.

    2. The power and lumens of output data can be varied up to ±10%.

    3. The above parameters are all typical values.

    CCT/Color Options

    LED STRIP SMD2835

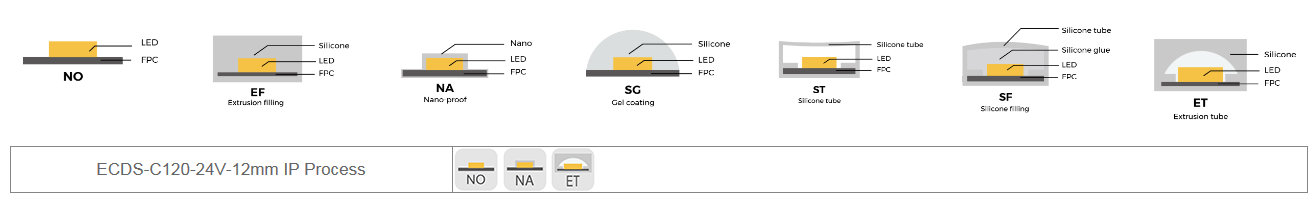

    IP Process Options

    LED STRIP IP

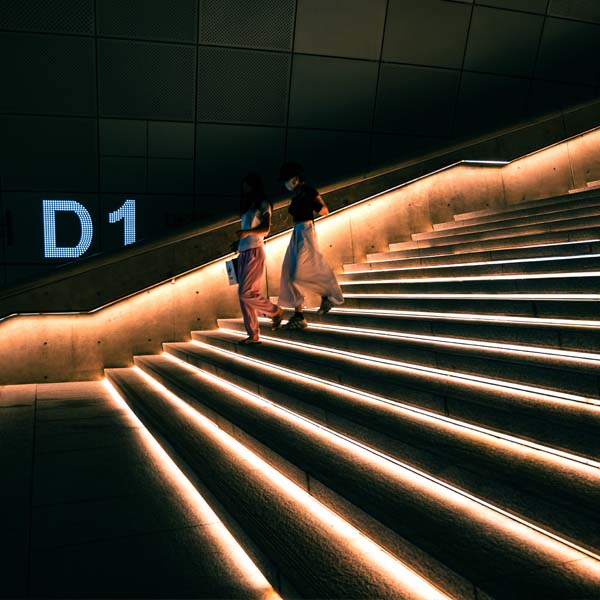

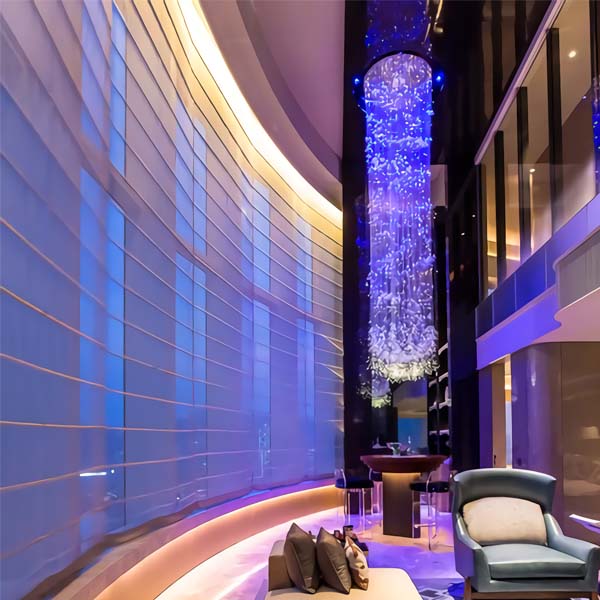

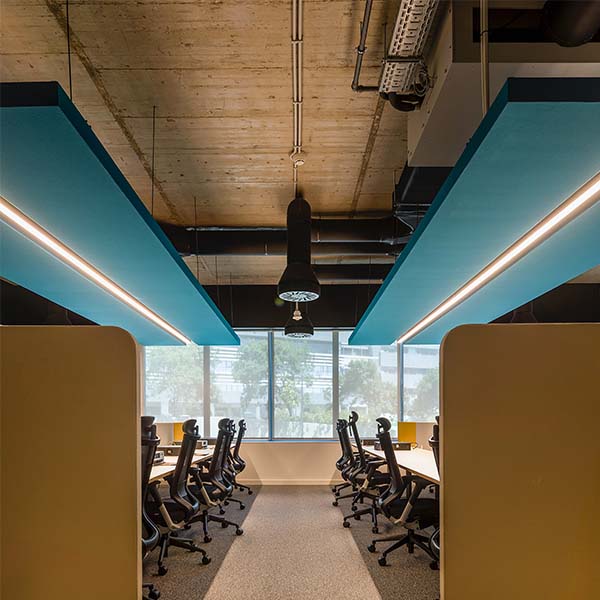

    Application:

    1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

    2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

    3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

    4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

    5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

    6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

    7. City beautification, landscape design, holiday decoration and so on.

    010203

    Precautions

    ※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

    ※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

    ※ Do not fold it in case any damage of LED beads.

    ※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

    ※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

    ※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.Storage temperature: 0℃~60℃.

    ※Please use the strips without waterproof within indoor environment with humidity less than 70%.

    ※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

    ※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

    ※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).

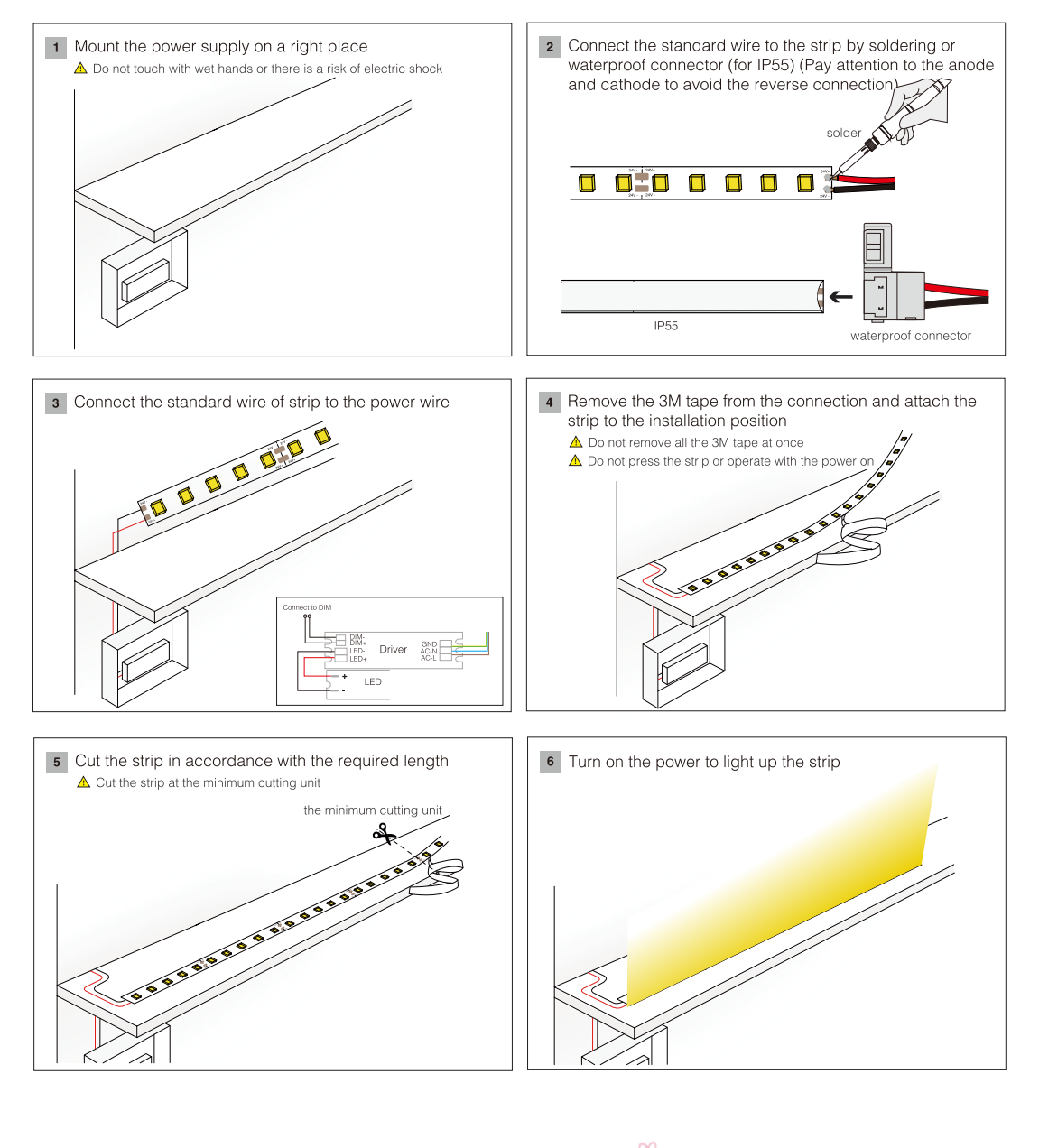

    Installation

    LED strip installation
