Factory Special Offer Ultra-long Flexible LED Strip SMD2835

We have more than 30 high speed automatic encapsulation pipelines and 15 automatic mounting and applied welding pipelines, characterizing complete LED strip production processes, such as LED encapsulation, high speed SMT, automatic welding, and full series of waterproof, with average monthly production capacity of 1.2 million meters of led strip. Set up new modern luminaries manufacturing factories so as to realize a whole chain of strip light production processes including precision machining, automatic assembly, color spraying and free customization, with average monthly production capacity of 120,000 pcs, in order to deliver high-quality and cost-effective best led strip lights to customers.



In 2019, we upgrade labs, forges professional teams and establishes entire test & detection systems, covering validate requirements of LED strip, neon strip, luminaire and power supply. Equipment contains raw material inspecting, safety, EMC, IP waterproof, IK impact, electrical properties of photoelectric, product reliability, packing reliability and other testing requirements, so as to verify and guarantee the reliable quality of the company’s products including LED strip, neon strip, RGB led strip, 2835 led, 5050 led, linear Lighting etc.


Product Detail

Product Tags

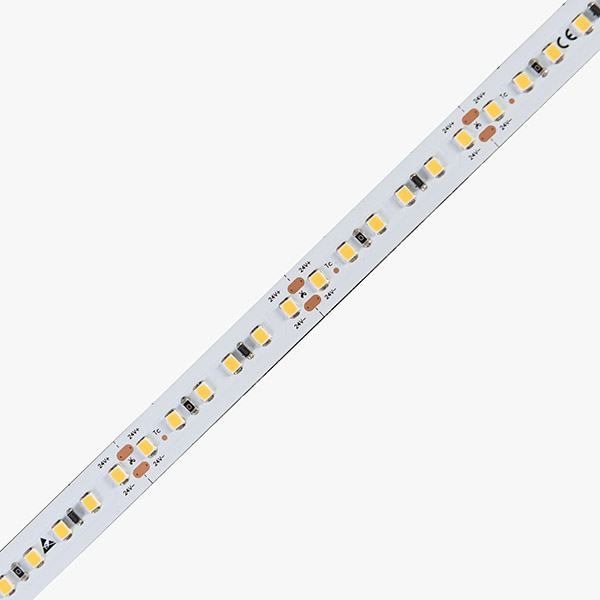

ECDS-C120-24V-12mm1

ECDS-C120-24V-12mm

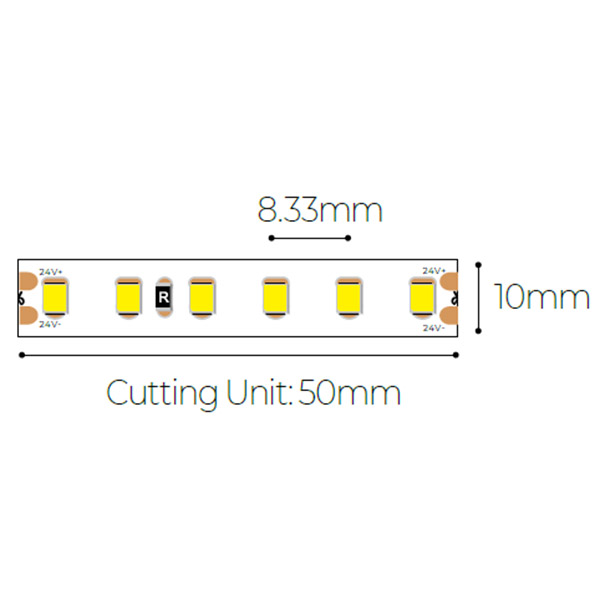

Cutting Unit

Cutting Unit

Brief Introduction

Full scene led strip which can help you optimize your products list, reduce the mix color mistake cost, lower the purchasing communication cost, saving the warehouse stock management cost, and better the marketing and sales person product training cost etc.
Our LED strip provides four series of tape light, including “PRO Series”, “STD Series”, “Toning Series” and “Neon Series”. Customers can select the most suitable led tape in terms of the applications, requirements of functions, projects, and budgets.
Adheres to independent R&D and sustaining innovation, and our products passed the ISO9001 QMS & ISO14001 EMS certification. All products have passed the testing of the third-party authoritative laboratories and have attained the quality certification from a variety of countries and regions: CE, REACH, ROHS, UL, TUV, LM-80 and so on.

Products Specification

Model

LEDs/m

DC(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECDS-C120-24V-12mm

120

24

6/50

9.6

1020

>80,>95

12

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECDS-C120-24V-12mm

20000*8*1.5mm

0.363A/m & 7.1A/5m

8.7W/m

9.6W/m

120°

3oz

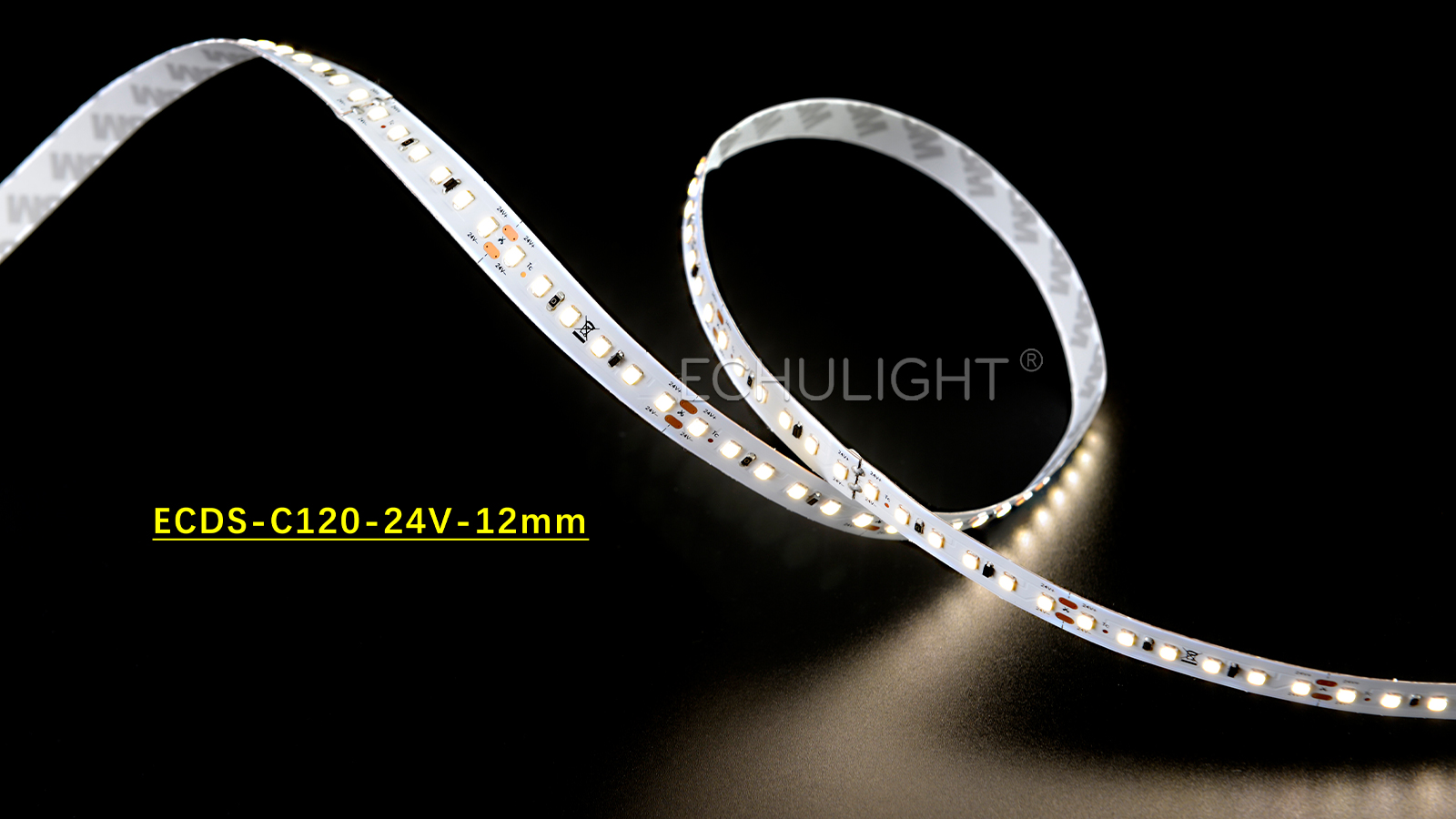

ECDS-C120-24V-12mm-2

CCT/Color Options

12

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECDS-C120-24V-12mm IP Process

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
