ECHULIGHT Flexible FCOB 24V LED Strip Light

Pro series of led strip, the white light strips feature special function or excellent performance, designed for specific applications, it can be either used independently or combined with profiles. It contains the ultra-long LED strip for large space application, the high-end LED strip designed for large-scale projects, the high-density LED strip designed for ultra-thin applications without light dots, the mini cut LED strip designed for customizable applying length and flexible interconnection without dark area, the high efficiency LED strip designed for energy and efficient lighting. Pro series led strip can meet the requirements of high-end spaces, such as commercial offices, museums, galleries and theatres, and the requirements of public space, such as schools, hospitals and governments.


Product Detail

Product Tags

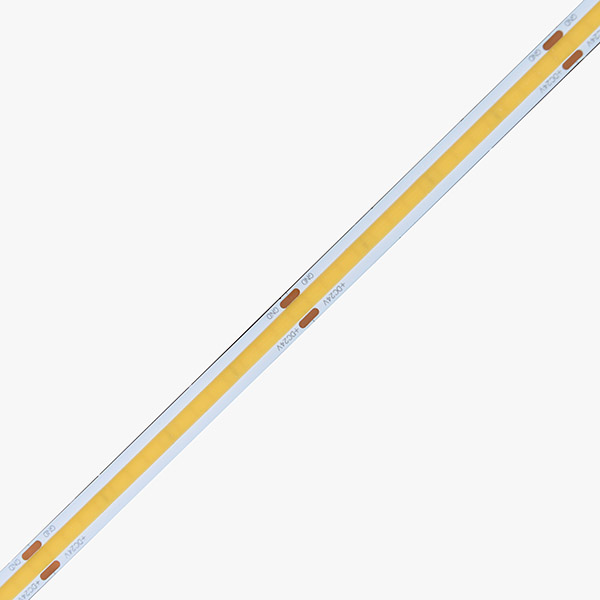

ECS-G224-24V-8mm1

ECS-G224-24V-8mm

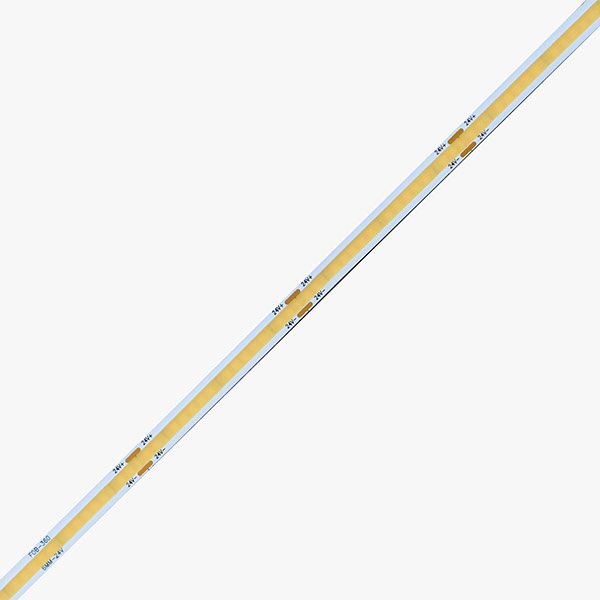

ECS-G360-24V-6mm1

ECS-G360-24V-6mm

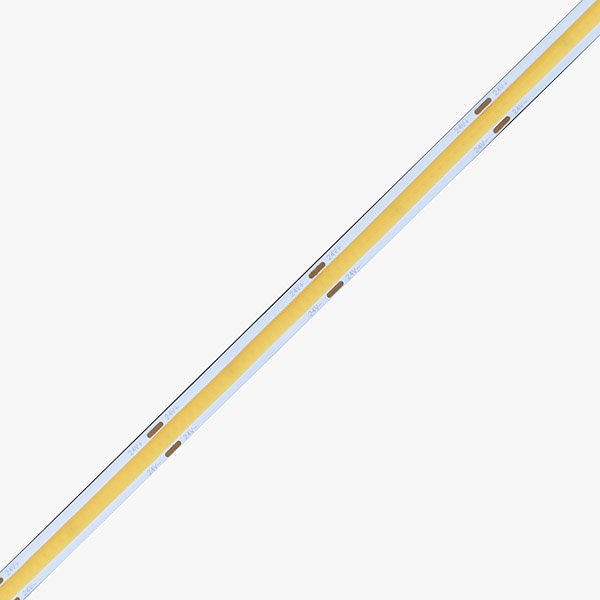

ECS-G360-24V-8mm1

ECS-G360-24V-8mm

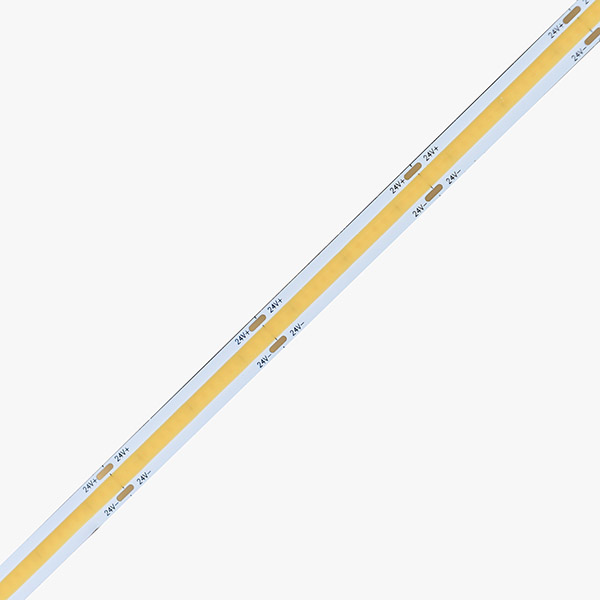

ECS-G360-24V-10mm1

ECS-G360-24V-10mm

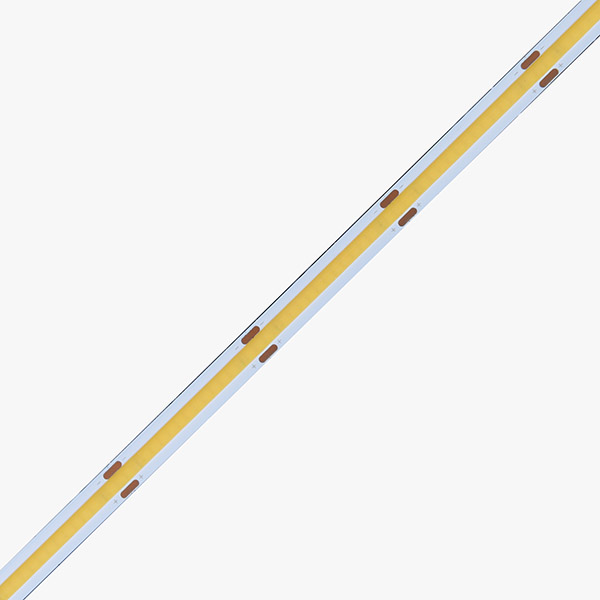

ECS-G384-24V-8mm1

ECS-G384-24V-8mm

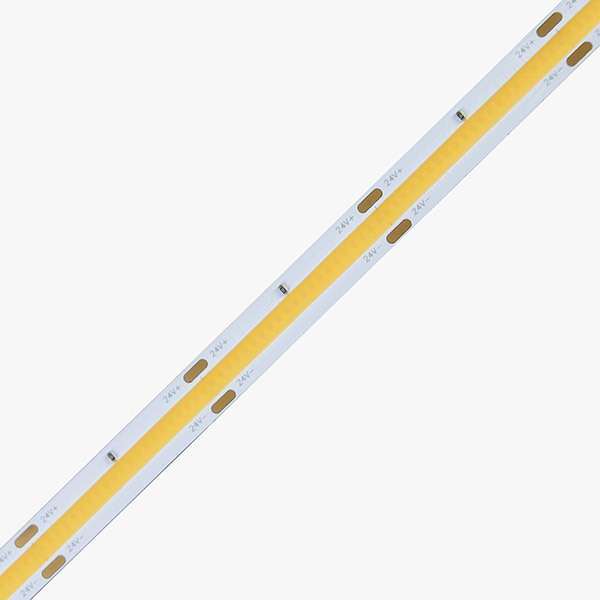

ECS-G504-24V-10mm1

ECS-G504-24V-10mm

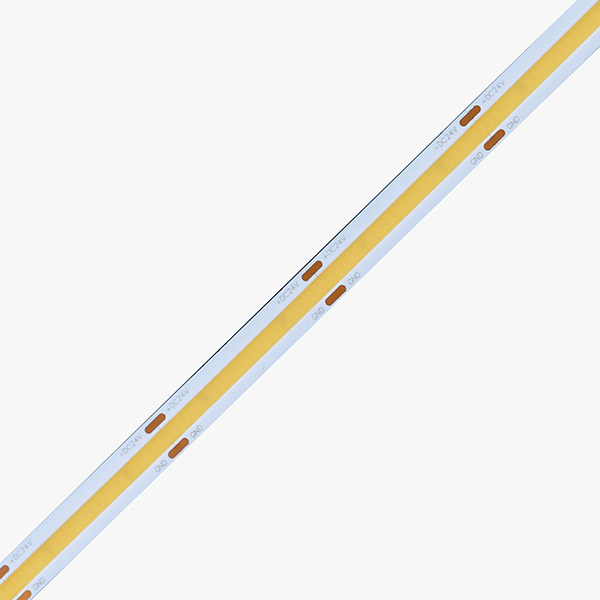

ECS-G528-24V-10mm1

ECS-G528-24V-10mm

Brief Introduction

LED Strip, adopting self-encapsulated LED, which passed LM80 and TM-30-15 testing, and high speed SMT, it is shaped by means of automatic mounting to offer different choices of power, color, CCT and CRI. A wide range of protections grades of IP55, IP65 and IP67 can be achieved by adopting silicone integrated extrusion, nano coating and other protection processes. Our flexible led strips passed CE, ROHS, UL and other certifications, applying to indoor and outdoor lighting, furniture, vehicle, advertisement and other supporting ranges. Outdoor led strip lights, led light strips for room, led strip lights for ceiling, led strip lights for bedroom are all included.
To provide you with the best LED strip products, we offer you a wide range of choice to customize the most satisfying products meeting your mind.
1. For our LED strip products, you can choose the LED type from 3528, 2835, 5050, 2216, 3014 and multiple chips are available from Epistar, Osram, Cree and Nichia.
2. Available to customize the wire with one end or dual ends
For all the led strips, you can customize them with one end or dual ends or even no entry cable.
3. Also, you can customize the wire type of led tape. And as well you can customize the connecting led strips length of the wire.
4. You can choose to use our brand label with ECHULIGHT on all the LED strips packing or customize with your own brand.
5. For all the packing of the LED strips, you can choose to pack with our brand packing, or you can choose the general no brand packing, or you can customize your own brand packing to protect the products and to display your company and brand.
6. No matter for RGB led strip or for general LED strip the silk printing content on the FPC, you can choose to print our general brand information, or you can choose to print your own brand information or you prefer no printing on them.
7. Available to customize one specific BIN or various BIN for color changing led strip lights or outdoor led strip lights or RGB light strip
8. Available to customize the length within the maximum supporting range
All the LEDs strips can customize the length with 5m/reel, 1.5m/reel or maximum 20m/reel.
9. Available to customize the color for all 12v led strip lights or 24v led strip from 1900k to 10000k, also you can choose the RGB color for RGB strip according to the special requirements of your projects or environment.
10. Generally, the CRI for all the LED strips is higher than 80, and also you can customize the CRI range from 80 to 95.
11. Adopt varieties IP process such as gel coating, silicone tube, NANO and integrated silicone extrusion, reach IP20、IP55、IP65、IP67、IP68 protection grade and so on.
12. For all the LED strips, you can customize the tape type with white tape, red tape, yellow tape to make them sticky led lights or without tape.

Products Specification

Model

LEDs/m

DC (V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECS-G224-24V-8mm

224

24

7/71.4

10

890

>80,>90

8

3

ECS-G384-24V-8mm

384

24

16/41.67

10

970

>80,>90

8

3

ECS-G360-24V-6mm

360

24

18/50

10

800

>80,>90

6

3

ECS-G360-24V-8mm

360

24

18/50

10

1350

>80,>90

8

3

ECS-G360-24V-10mm

360

24

18/50

10

1321

>80,>90

10

3

ECS-G504-24V-10mm

504

24

28/55.5

14

1350

>80,>90

10

3

ECS-G528-24V-10mm

528

24

24/45.45

14

1372

>80,>90

10

3

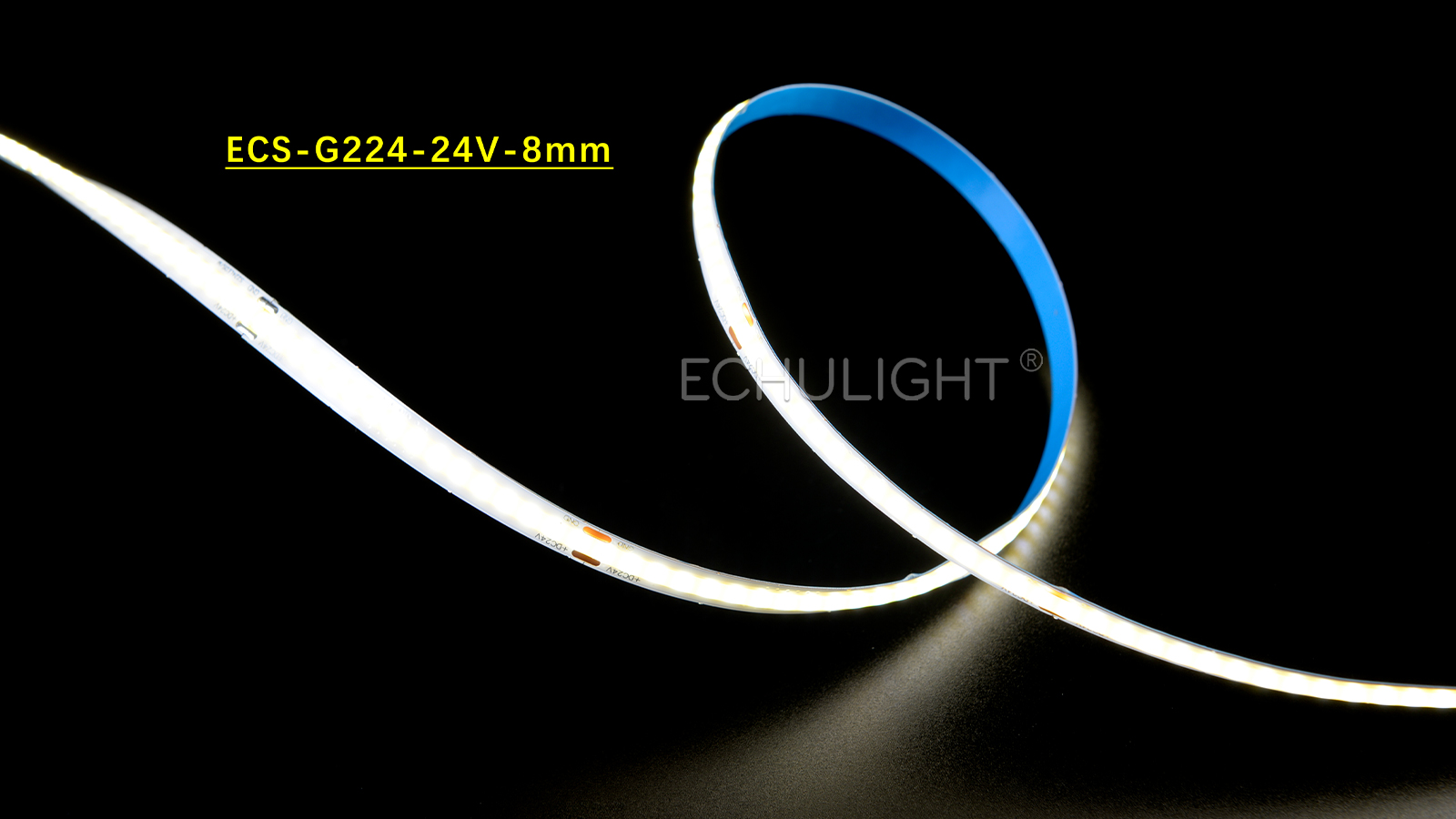

ECS-G224-24V-8mm-2

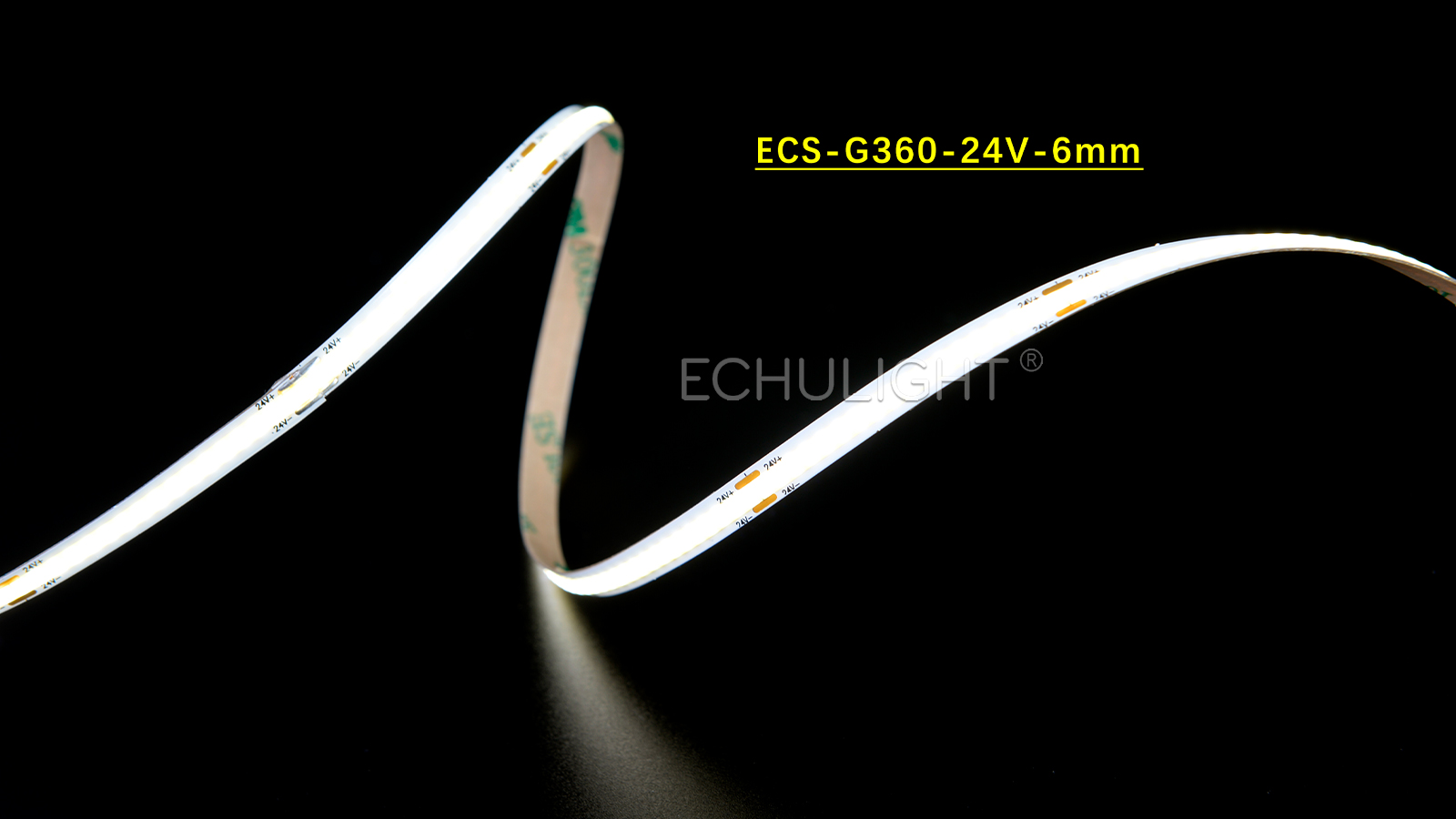

ECS-G360-24V-6mm-2

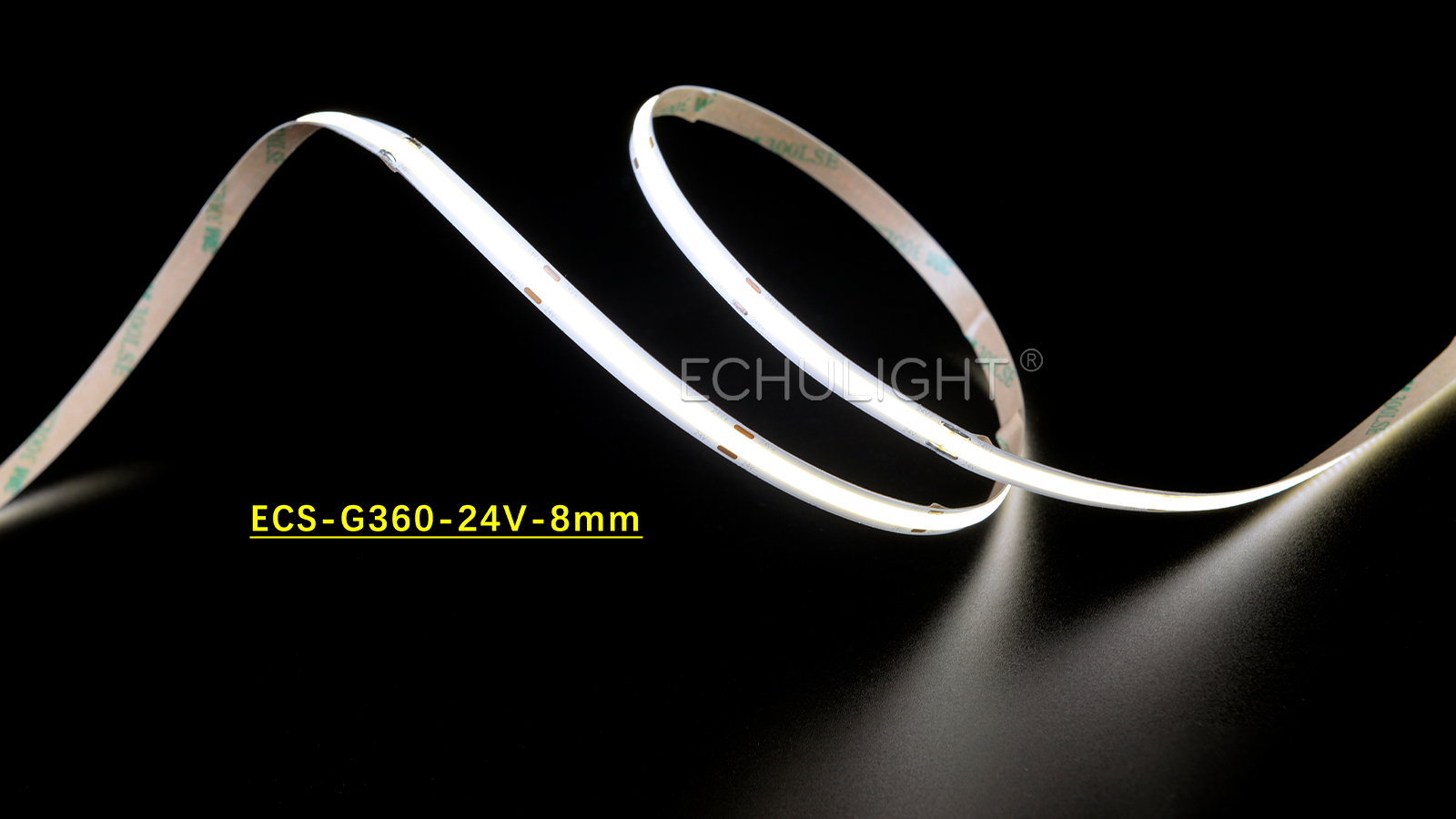

ECS-G360-24V-8mm-2

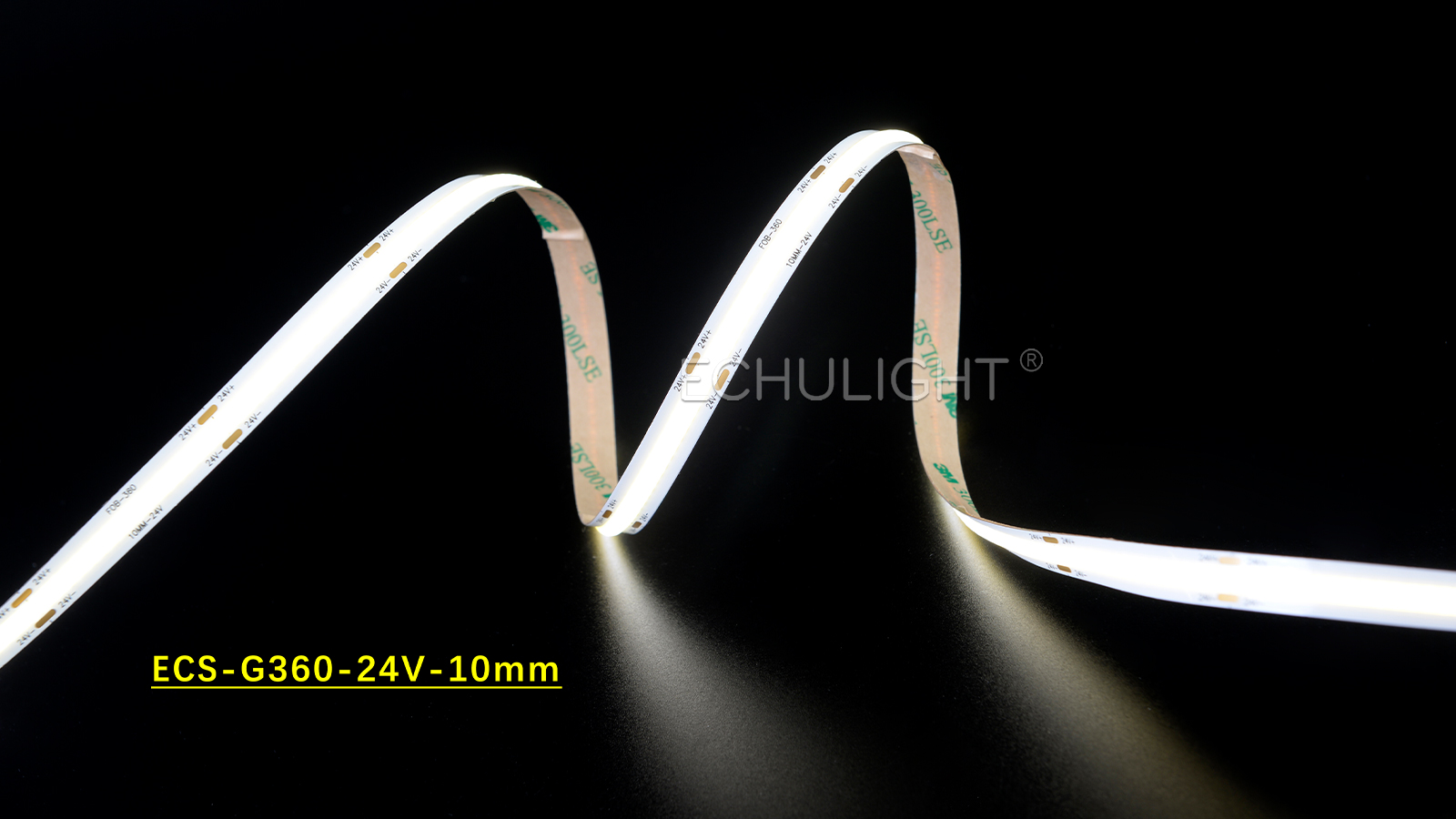

ECS-G360-24V-10mm-2

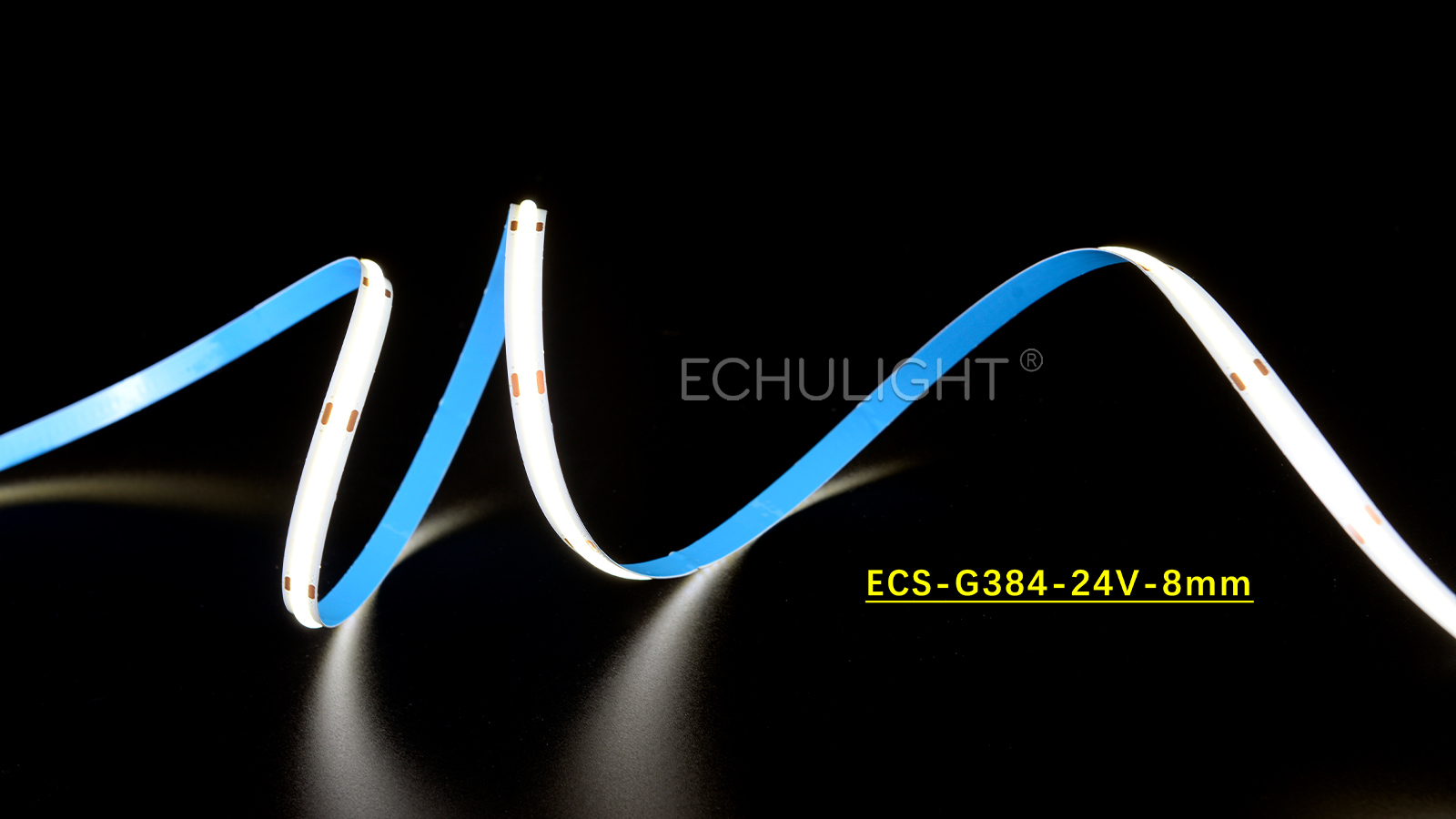

ECS-G384-24V-8mm-2

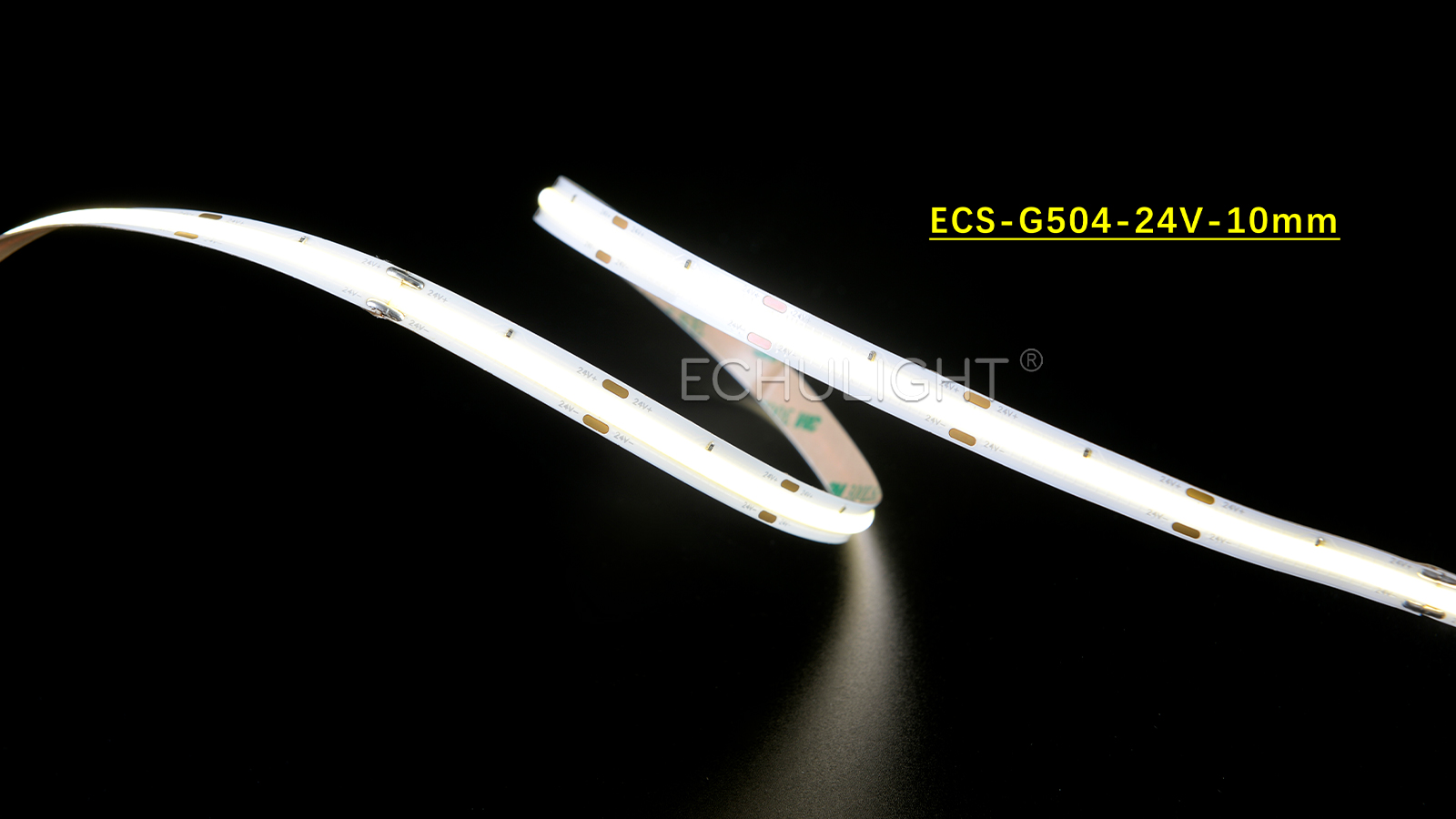

ECS-G504-24V-10mm-2

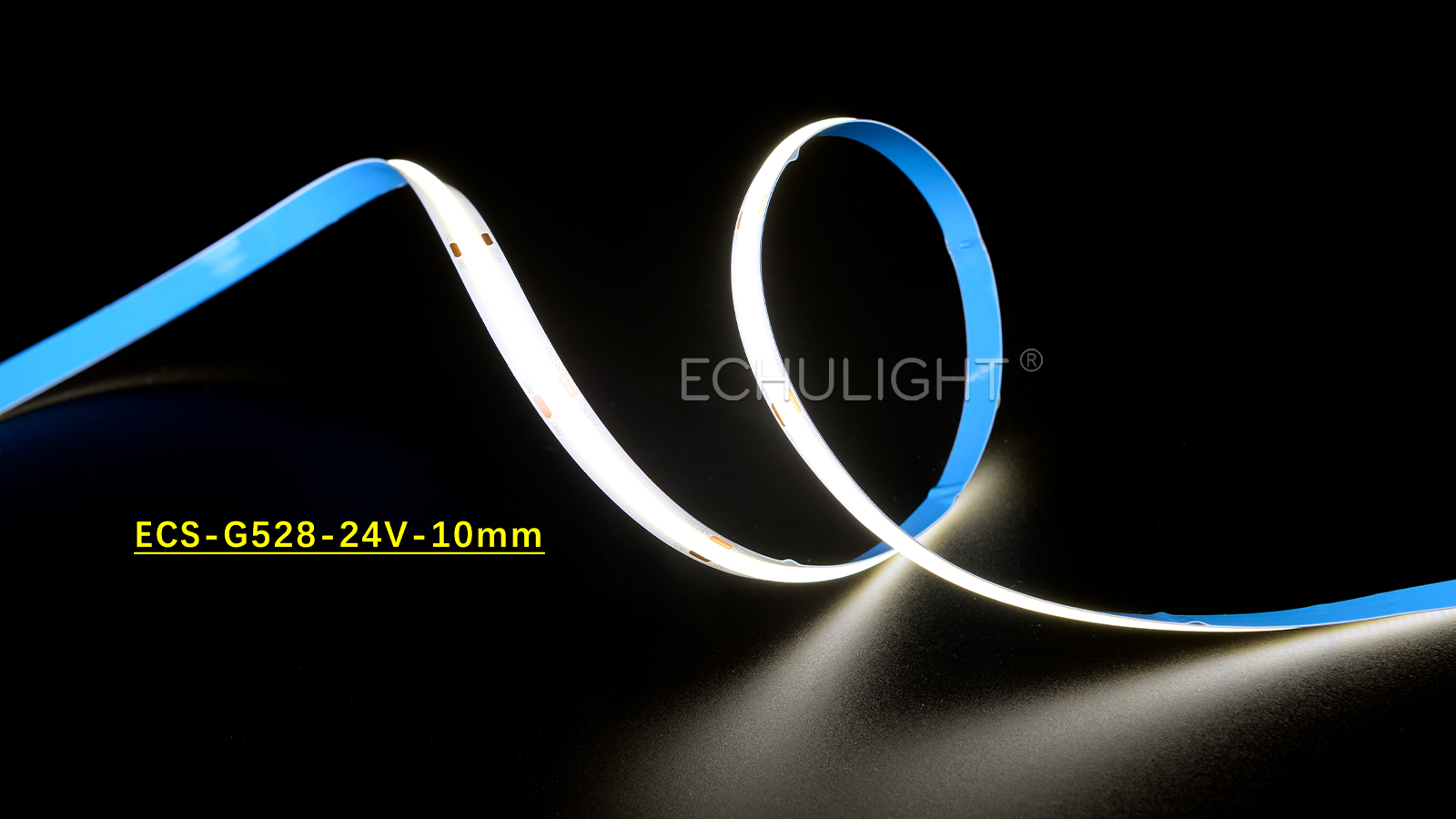

ECS-G528-24V-10mm-2

Basic Parameters

Model

Size

Input Current

Typ.Power

Max.Power

Beam Angle

Copper Foil

ECS-G224-24V-8mm

5000*8*2mm

0.42A/m & 2.08A/5m

9.5W/m

10W/m

180°

2oz

ECS-G384-24V-8mm

5000*8*2mm

0.42A/m & 2.08A/5m

9.5W/m

10W/m

180°

2oz

ECS-G360-24V-6mm

5000*6*2mm

0.42A/m & 2.08A/5m

9.5W/m

10W/m

180°

2oz

ECS-G360-24V-8mm

5000*8*2mm

0.42A/m & 2.08A/5m

9.5W/m

10W/m

180°

2oz

ECS-G360-24V-10mm

5000*10*2mm

0.58A/m & 2.92A/5m

13.5W/m

14W/m

180°

3oz

ECS-G504-24V-10mm

5000*10*2mm

0.56A/m & 2.8A/5m

13.5W/m

14W/m

180°

2oz

ECS-G528-24V-10mm

5000*15*2mm

0.58A/m & 2.92A/5m

13.5W/m

14W/m

180°

2oz

CCT/Color Options

4

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECS-G224-24V-8mm

ECS-G360-24V-10mm

ECS-G384-24V-8mm

ECS-G504-24V-10mm

ECS-G360-24V-6mm

ECS-G528-24V-10mm

ECS-G360-24V-8mm

——

——

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃. Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
