Experienced Supplier High Luminance Flexible LED Strip SMD2835

As a forerunner, a professional manufacturer of led strip lights, we keep exploring and expanding the definition and boundary of strip lights. At present, our led tape light contains various categories and forms of light source and luminaire, as listed in our website and catalogue, such as RGB led strip, toning led strip, neon led strip, Linear Lighting, and related strip lights controllers, in order to provide clients building spatial light environments with perfect linear lighting solutions and best flexible led strip lights.


Product Detail

Product Tags

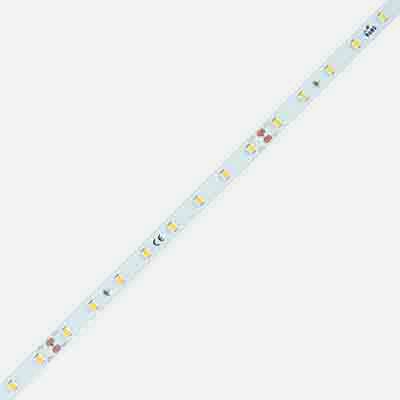

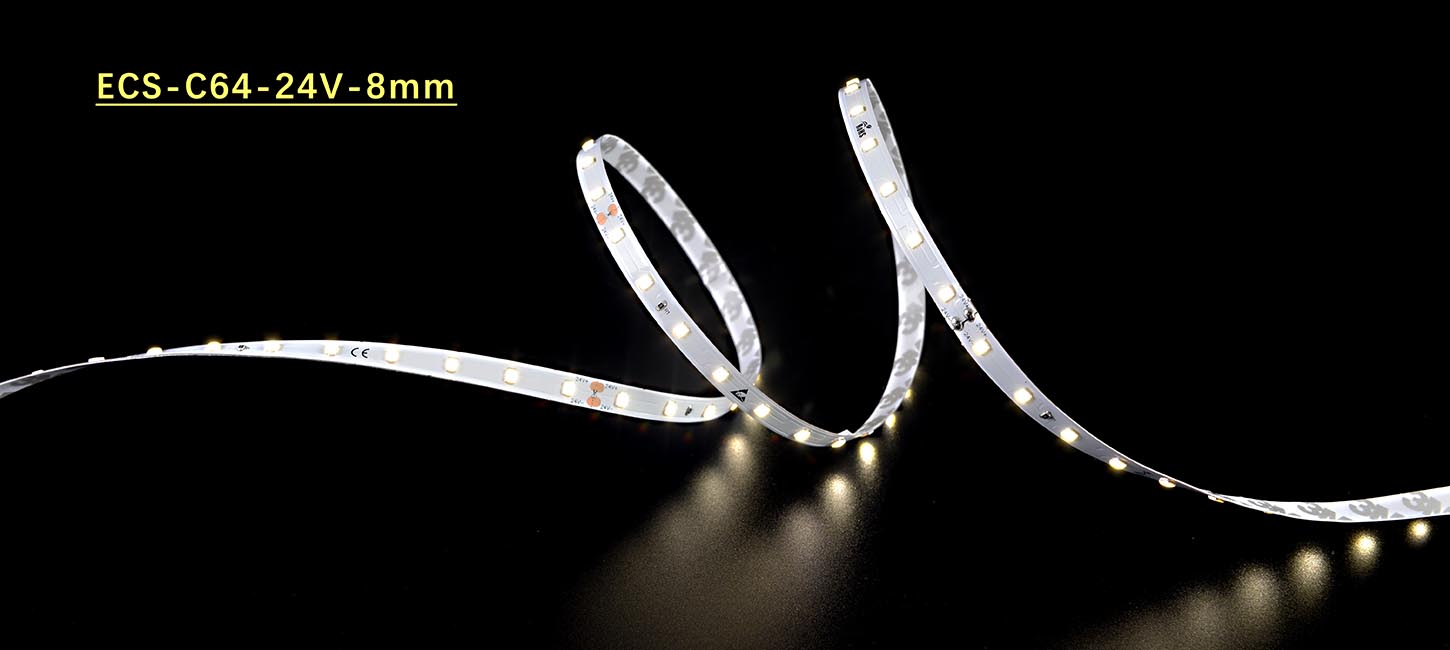

ECS-C64-24V-8mm

ECS-C64-24V-8mm

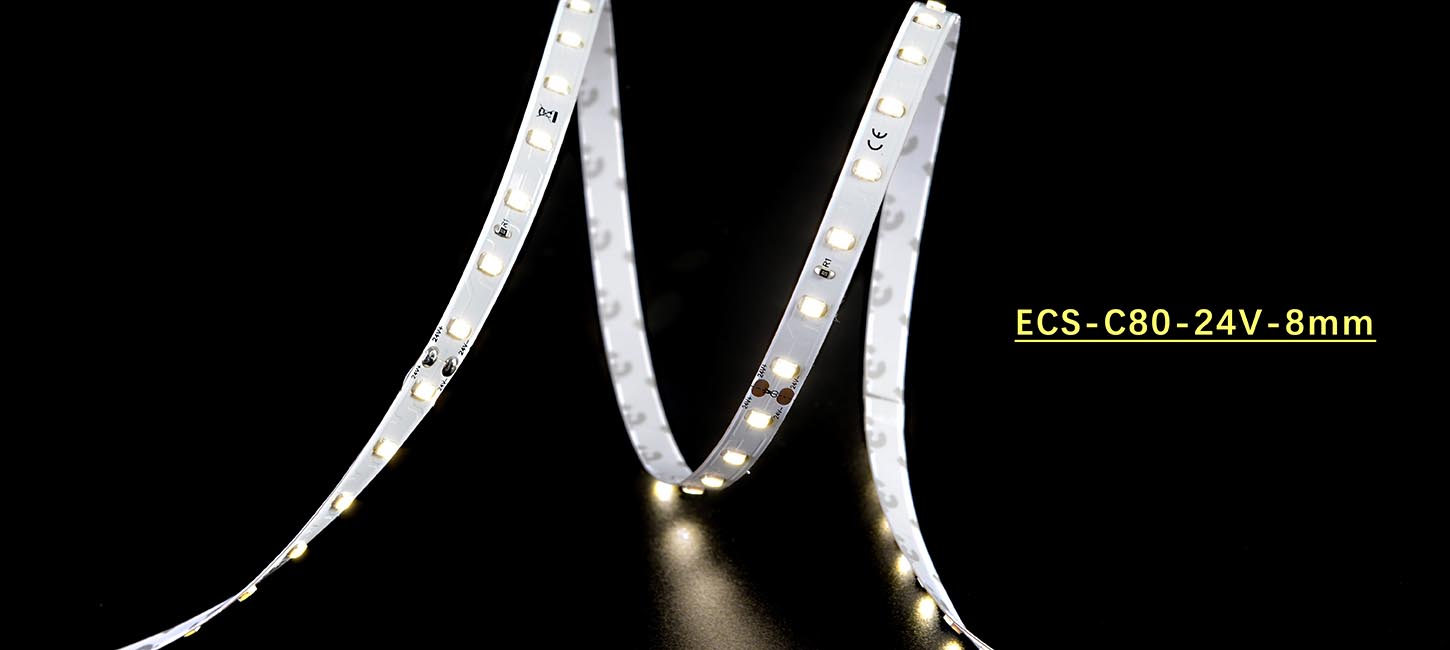

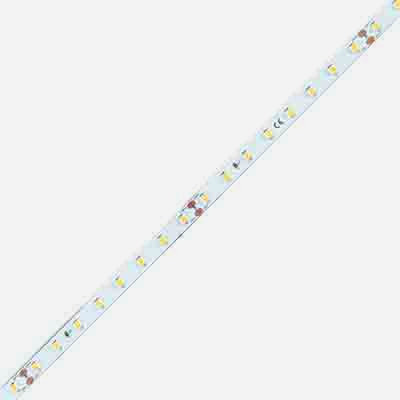

ECS-C80-24V-8mm

ECS-C80-24V-8mm

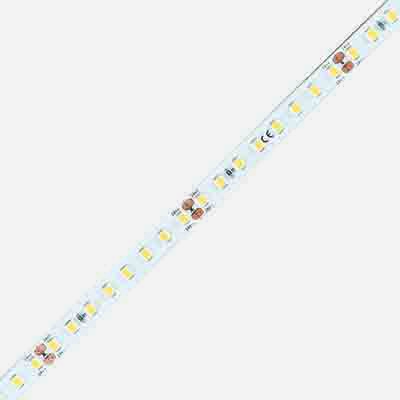

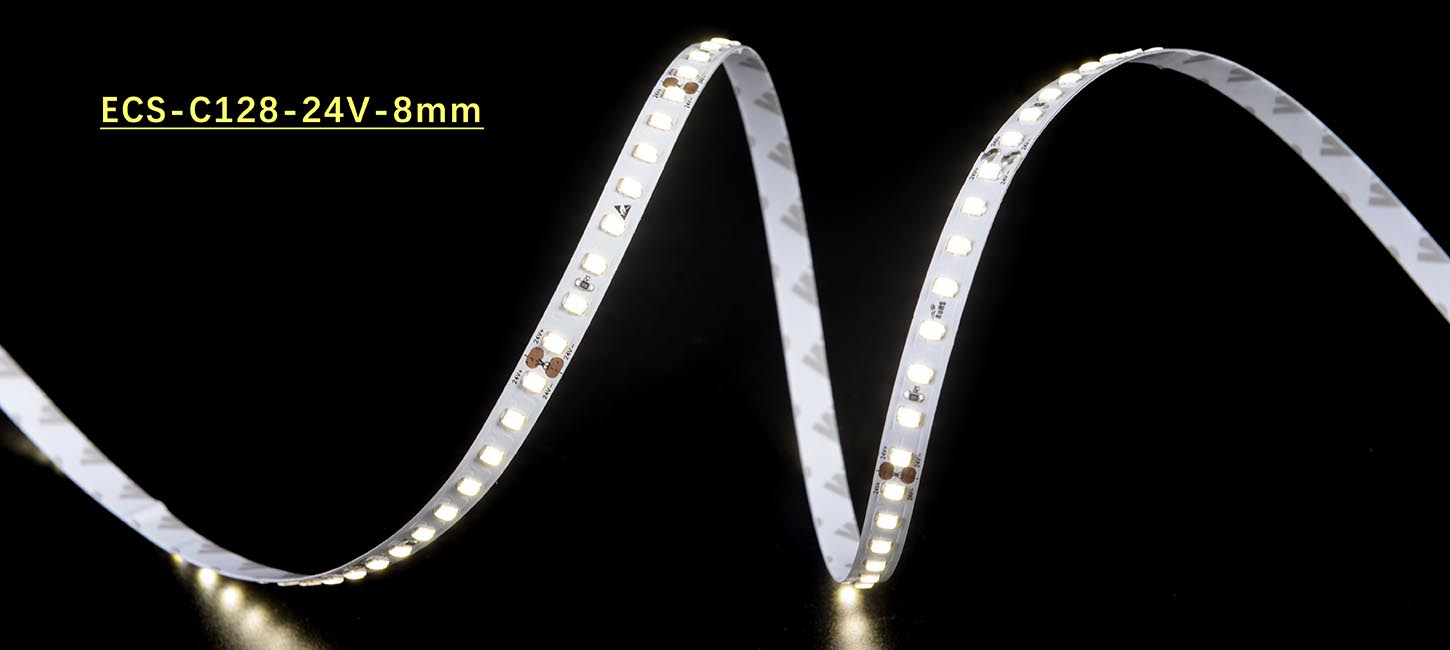

ECS-C128-24V-8mm

ECS-C128-24V-8mm

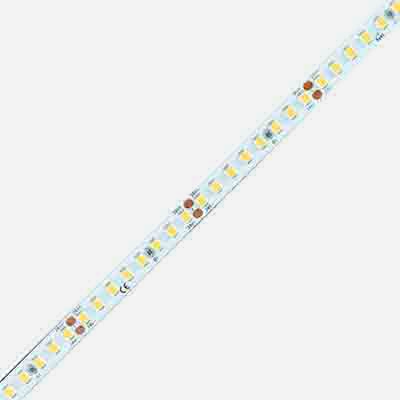

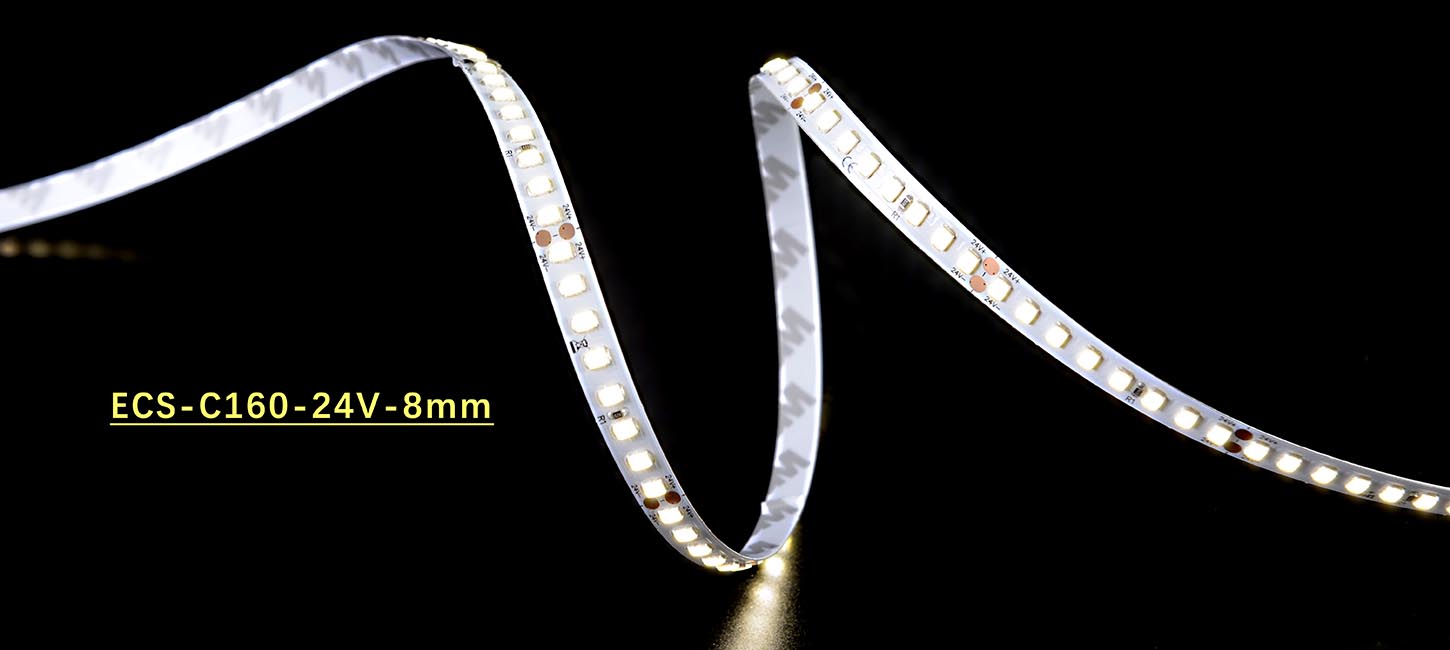

ECS-C160-24V-8mm

ECS-C160-24V-8mm

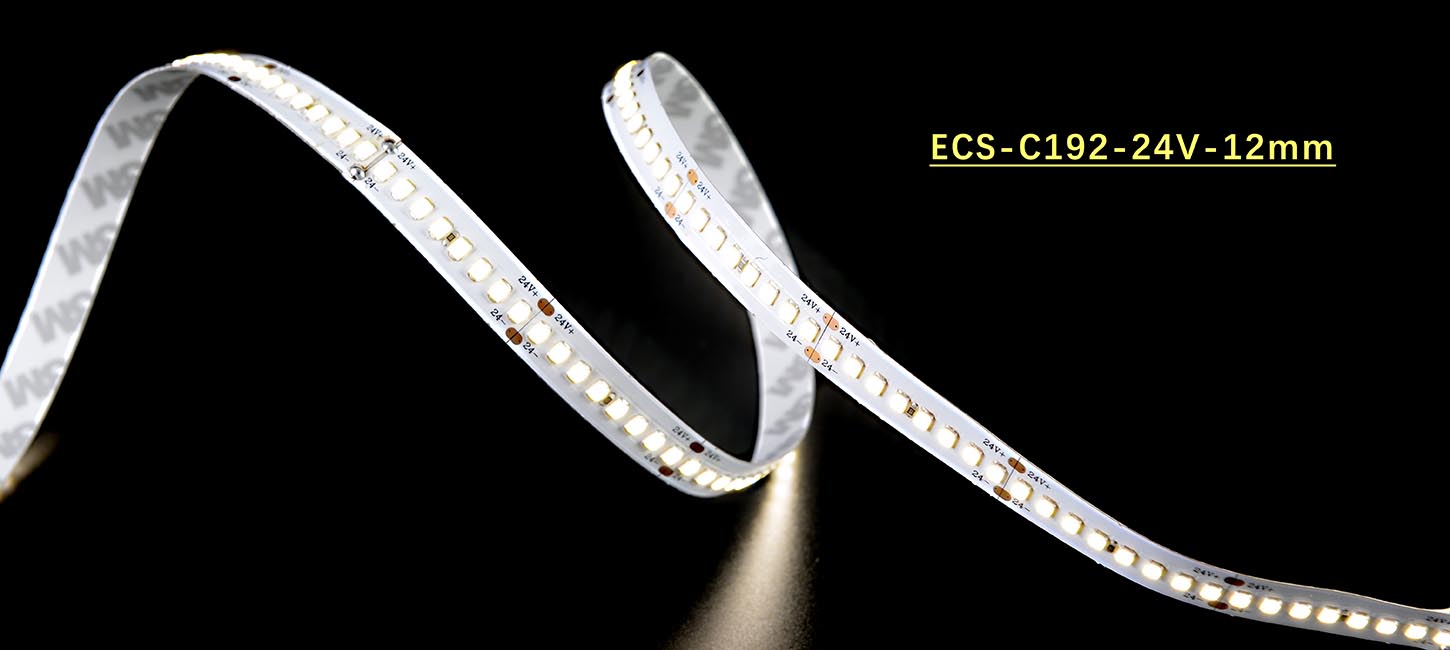

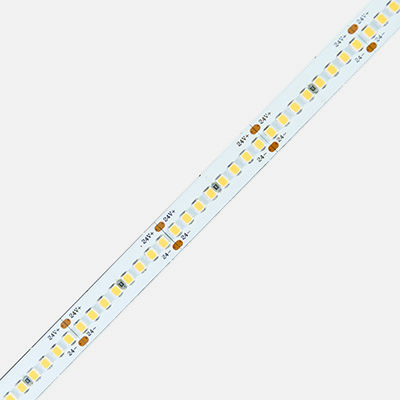

ECS-C192-24V-12mm

ECS-C192-24V-12mm

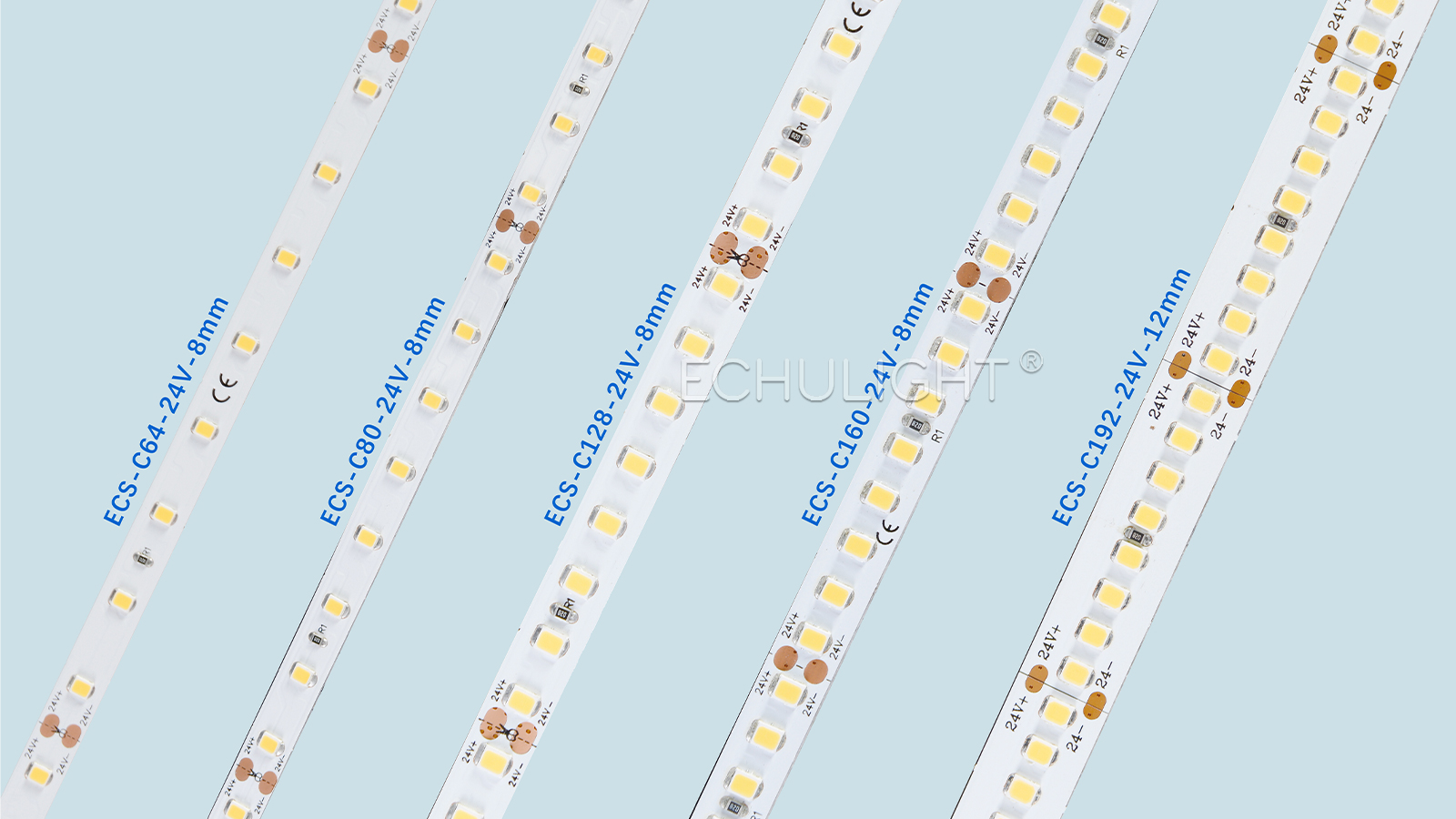

01-01

Brief Introduction

Pro series of led strip, the white light strips feature special function or excellent performance, designed for specific applications, it can be either used independently or combined with profiles. It contains the ultra-long LED strip for large space application, the high-end LED strip designed for large-scale projects, the high-density LED strip designed for ultra-thin applications without light dots, the mini cut LED strip designed for customizable applying length and flexible interconnection without dark area, the high efficiency LED strip designed for energy and efficient lighting. Pro series led strip can meet the requirements of high-end spaces, such as commercial offices, museums, galleries and theatres, and the requirements of public space, such as schools, hospitals and governments.
The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

Products Specification

Model

LEDs/m

DC

(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECS-C64-24V-8mm

64

24



8/125

4.8

677

>80

8

3

ECS-C80-24V-8mm

80

24



8/100

6

853

>80

8

3

ECS-C128-24V-8mm

128

24



8/62.5

9.6

1383

>80

8

3

ECS-C160-24V-8mm

160

24



8/50

12

1712

>80

8

3

ECS-C192-24V-12mm

192

24



8/41.67

17.3

2854

>80

12

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECS-C64-24V-8mm

5000*8*1.5mm

0.2A/m & 1A/5m

4.3W/m

4.8W/m

120°

2oz

ECS-C80-24V-8mm

5000*8*1.5mm

0.25A/m & 1.25A/5m

5.4W/m

6W/m

120°

2oz

ECS-C128-24V-8mm

5000*8*1.6mm

0.4A/m & 2A/5m

8.7W/m

9.6W/m

120°

2oz

ECS-C160-24V-8mm

5000*8*1.6mm

0.5A/m & 2.5A/5m

10.8W/m

12W/m

120°

3oz

ECS-C192-24V-12mm

5000*12*1.5mm

0.72A/m & 3.6A/5m

15.05W/m

17.3W/m

120°

2oz

a1
a2
a3
a4
a5

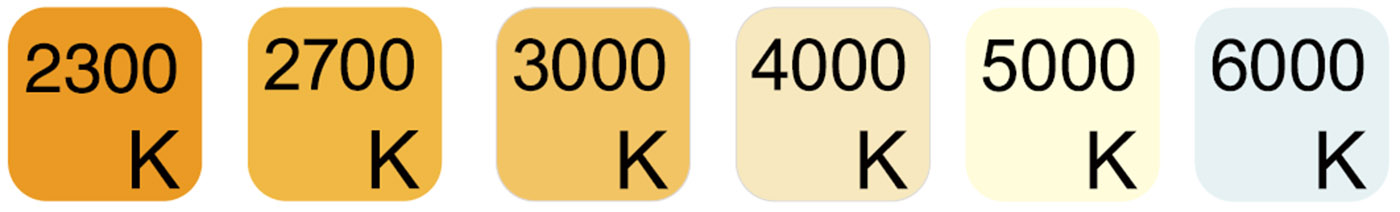

CCT/Color Options

CCTColor Options

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECS-C64-24V-8mm

1

ECS-C160-24V-8mm

1

ECS-C80-24V-8mm

1

ECS-C192-24V-12mm

1

ECS-C128-24V-8mm

1

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.
