Outdoor and Room Use Multi Color Flexible LED Strip Lights

The LED strip provides four series of products, including “PRO Series”, “STD Series”, “Toning Series”. Users can select the most suitable products in terms of the applications, requirements of functions, projects, and budgets.


Product Detail

Product Tags

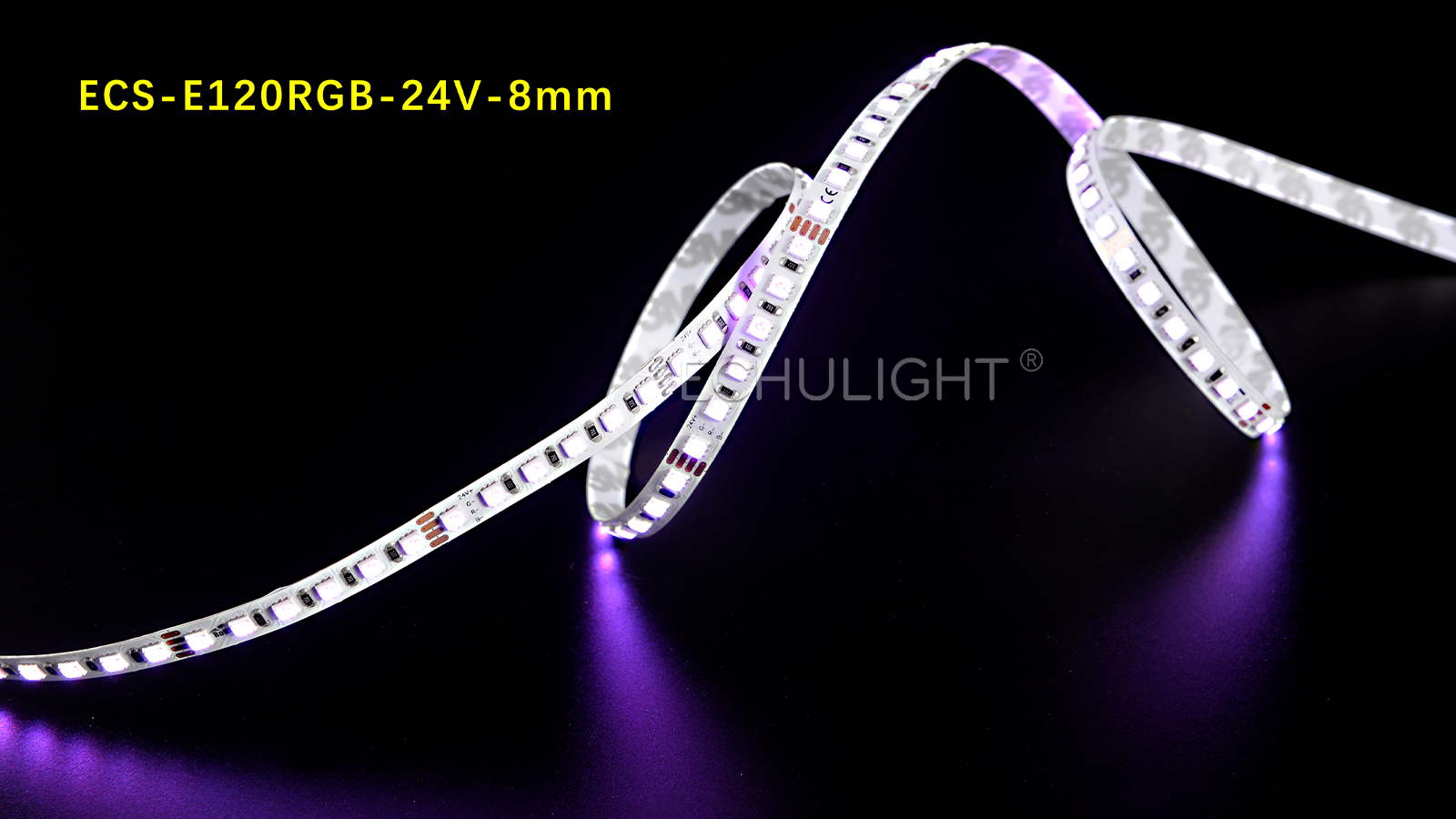

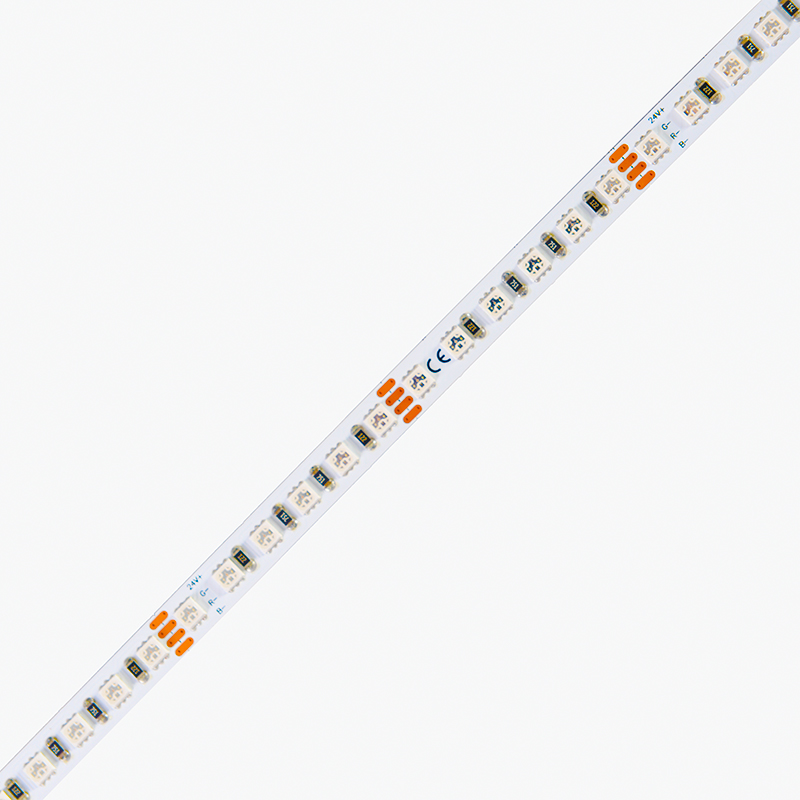

ECS-E120RGB-24V-8mm

ECS-E120RGB-24V-8mm

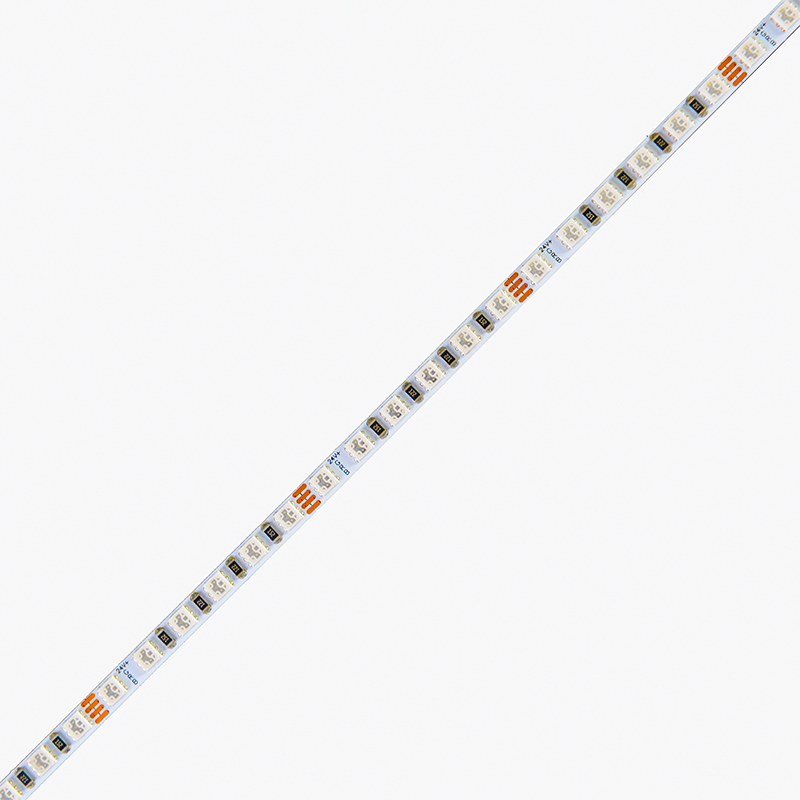

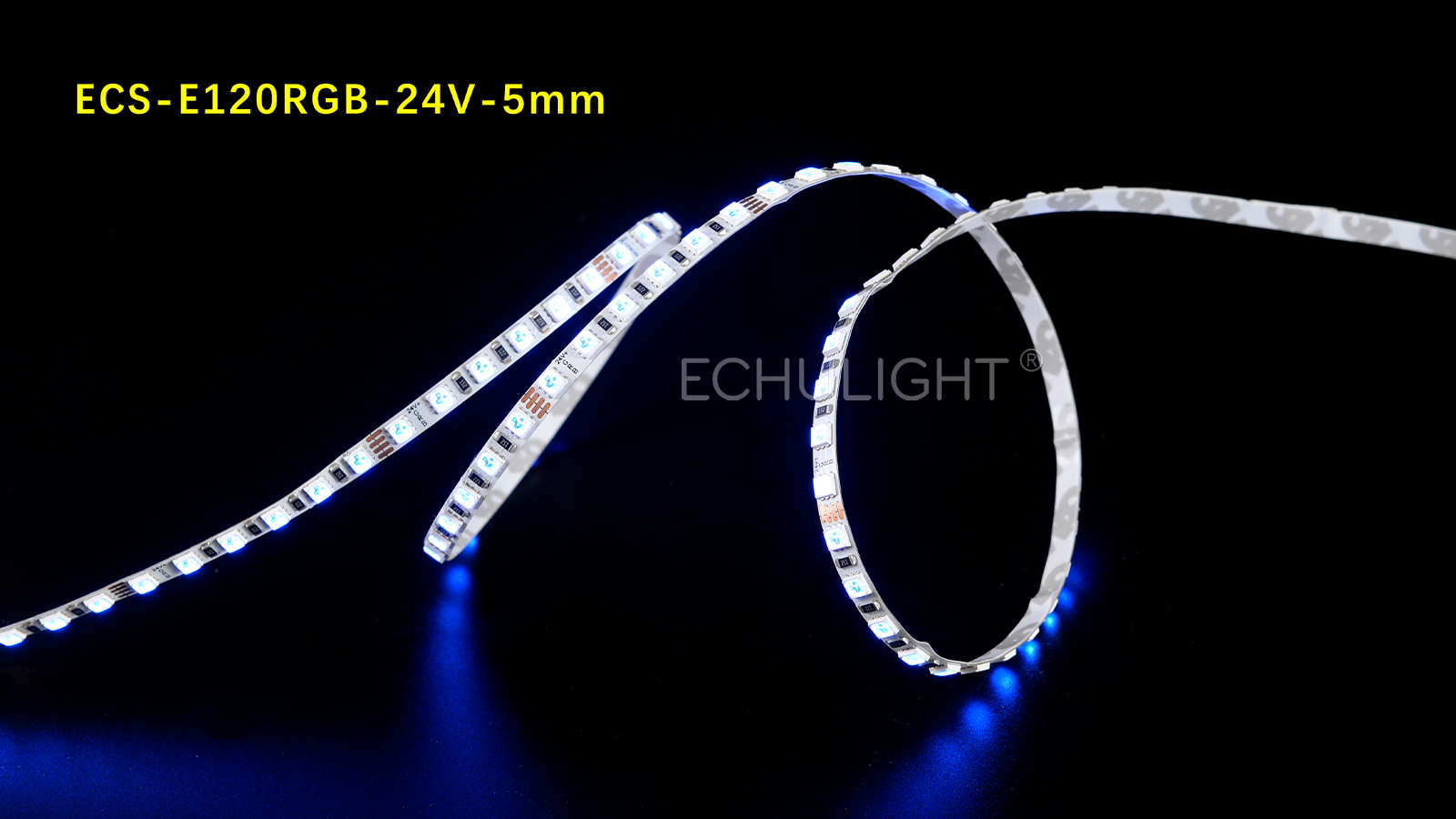

ECS-E120RGB-24V-5mm

ECS-E120RGB-24V-5mm

Brief Introduction

Toning series of led strip can meet the requirements of CCT changing in the same space during different periods for different users. It contains toning LED strip with dual white light, the RGB LED strip features color changing, the RGBW LED strip, and the digital LED strip features dynamic color changing. The series is widely compatible with all kinds of dimming &toning controllers. Toning series is widely used for residential space, showcasing space, entertainment space, bar, KTV, and hotel, to achieve decorative lighting, atmosphere creation and scenarios changing in holidays. Such as led light strips for room, led strip lights for ceiling, led strip lights for bedroom, RGB led strip, hue light strip, RGB light strip, RGB strip, RGBW led strip, rgbic led strip, color changing led strip lights, multi colored led strip lights etc.
Toning series LED strip lights, designed for special light-emitting angle requirements (side-emitting, S shape, ultrasmall & ultra-large angle lighting, etc.) and the extremely-narrow lighting surface requirements (installation space is particularly limited). Toning series is widely used for the decorative lighting of corner, wall edges, and the advertising lighting.
The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

Products Specification

Model

LEDs/m

DC

(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

FPC Width
(mm)

Warranty
(year)

ECS-E120RGB-24V-5mm

120

24

111

6/50

9

5

3

ECS-E120RGB-24V-8mm

120

24

111

6/50

12.2

8

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECS-E120RGB-24V-5mm

5000*5*3.5mm

0.38A/m & 1.88A/5m

7.5W/m

9W/m

120°

2oz

ECS-E120RGB-24V-8mm

5000*8*3.5mm

0.5A/m & 2.5A/5m

11W/m

12.2W/m

120°

2oz

ECS-E120RGB-24V-5mm-2
ECS-E120RGB-24V-8mm-2

CCT/Color Options

111

Color

Wavelength

R

625nm

G

525nm

B

470nm

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECS-E120RGB-24V-5mm

111

ECS-E120RGB-24V-8mm

111

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.
Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
