LED STRIP LIGHT

Indoor Commercial Auxiliary Linear Lighting LED Strip Light for room

Linear Lighting System, based on “flexible” and “interconnected” linear light source, intensifies the luminaire structure and optical design and regards lighting as an important factor of interior design, moving back and forth freely along the edge of ceilings, floors and walls. The final effect is provided with creative sense and futuristic sense, endowing a brand-new definition to space.


Product Detail

Product Tags

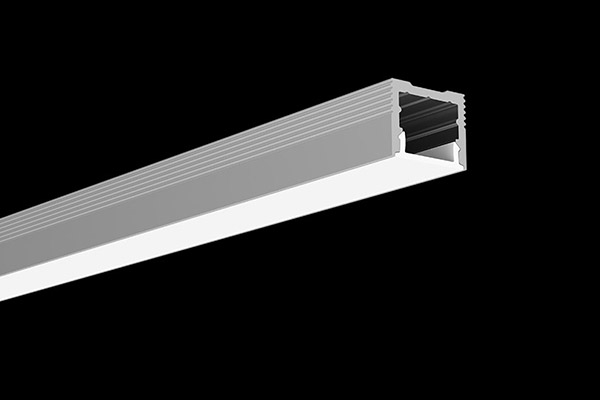

ECP-1613~

ECP-1613

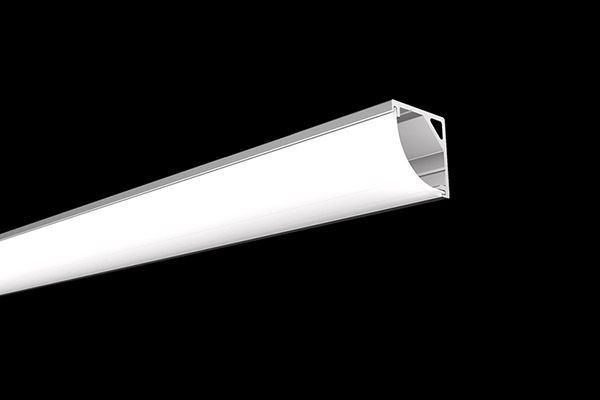

ECP-1616C~

ECP-1616C

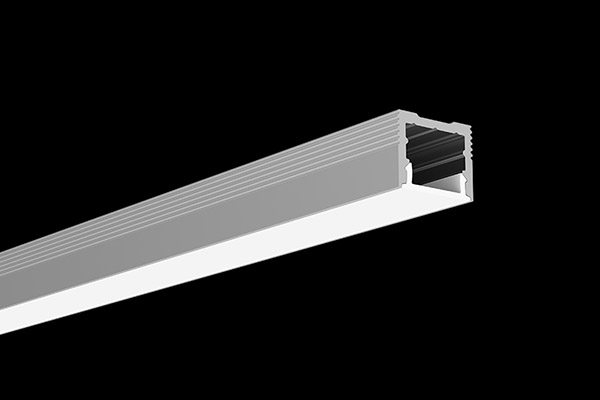

ECP-2013~

ECP-2013

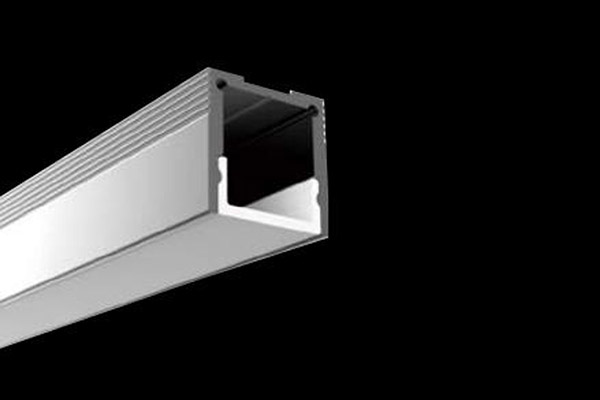

ECP-2020~

ECP-2020

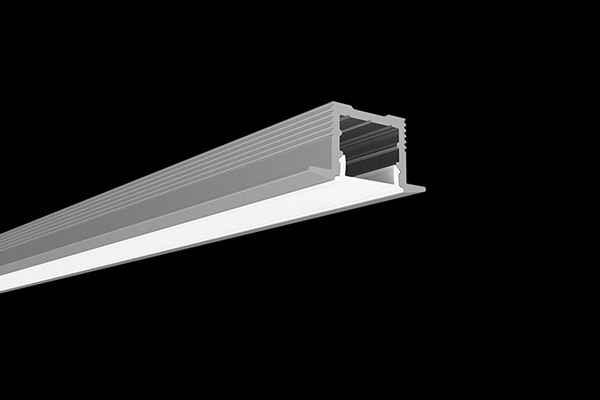

ECP-2513~

ECP-2513

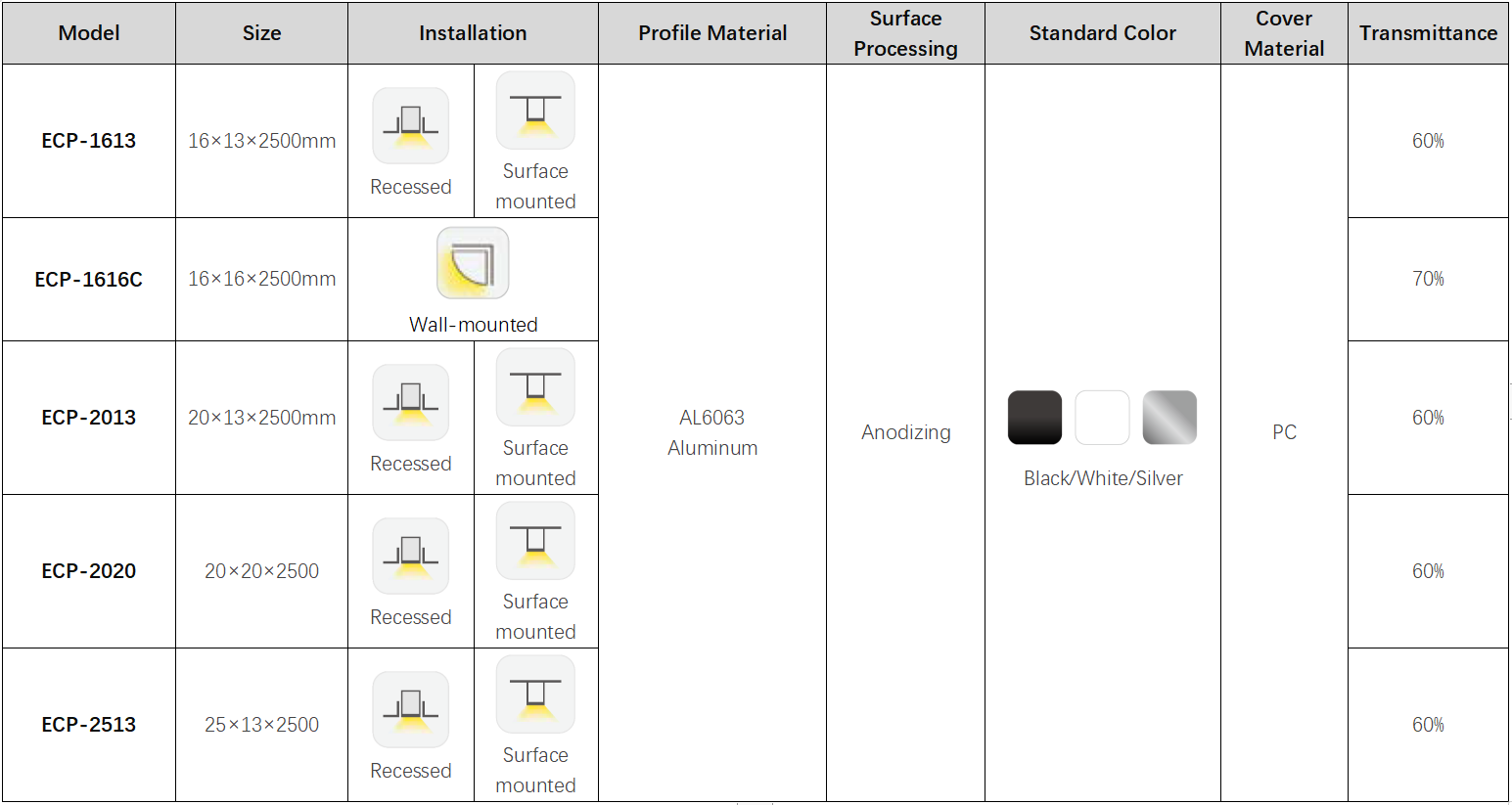

Basic Information

bi

Features

AL6063-T5 aluminum profile with high-quality surface treatment and three optional colors of black, white and silver
Specially designed light source with PC diffusers producing homogenous & soft lighting
Various installation ways: pendant, recessed and surface mounted

We offer Various sizes so that all the profiles are applicable to all kinds of PCB width.
Various installation-Pendant mounting, surface mounting, embedded mounting, etc.
High quality aluminum-Make the flexible strip more elegant. No fading nor rusting.
Good radiating effect-Aluminum led profile can dissipate heat much better.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.
SDCM <2
To provide our clients with best led strip lights, all our led stirp with SDCM <2, no visual difference between the same batch of products
Customer-specific Bin management
Always the same Bin for different batches One bin,2-step, all strip lights are without visual difference forever
LED tape FS CRI>98, as natural as sunshine
The color rendition is as natural as sunshine with the CRI≥95 or full spectrum LEDs;
LED strip Application Guidelines
Different color temperatures for different environments make it possible to choose appropriate LED strip light source as required.

Lighting Source


Model

CRI

Lumen

Voltage

Typ. Power

LEDs/m

Size

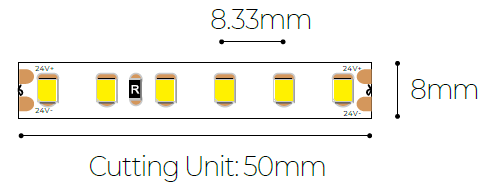

FPC Strip

2835-120-24V-8mm

>80

1499LM/m(4000K)

24V

14.4W/m

120LEDs/m

5000x8x1.5mm

Ultra-thin flexible PCB is specially designed for special applications. Produced with high lumen and small led size, SMD2835 led strip light has high brightness, which can reach 26~28lm each led. With the less power, it can have more lumen, save much energy. With brand chips, brand led and PCB ensure the quality of flexible led strip light. This is an excellent choice to meet the demand of commercial applications which needs maximum brightness to highlight features. With a dimmable controller, led strip can be widely used in different applications, from high brightness to comfortable accent light. 5mm, 8mm, 10mm,20mm, 34mm, 52mm width flexible PCB led strip are all available for choice according to your specific needs.

The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

/

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

Packing Details

12

Individual Package

Model Type Size(mm)    N.W(kg)    G.W(kg)

Content

ECP-1613 Circular Cylinder Ø31*2580 0.54 0.99 1 set(Profile + Diffuser + End cap + Clips)
ECP-1616C Circular Cylinder Ø31*2580 0.45 0.9 1 set(Profile + Diffuser + End cap + Clips)
ECP-2013 Circular Cylinder Ø31*2580 0.65 1.1 1 set(Profile + Diffuser + End cap + Clips)
ECP-2020 Packing Box 41*27.5*2580 0.94 1.54 1 set(Profile + Diffuser + End cap + Clips)
ECP-2513 Packing Box 41*21.5*2580 0.57 1.23 1 set(Profile + Diffuser + End cap + Clips)

Bundle Package

CBM(m3) Size(mm) N.W(kg) G.W(kg)     Qty/bundle
ECP-1613 0.05 155*124*2580 8.64 15.8 16 set
ECP-1616C 0.05 155*125*2580 7.2 14.4 16 set
ECP-2013 0.05 155*124*2580 10.4 17.6 16 set
ECP-2020 0.05 123*110*2580 11.3 22.2 16 set
ECP-2513 0.0363 164*86*2580 9.2 19.7 16 set

FAQ

1.What kind of chips do we use for LED light?
We mainly use brand LED chips, such as Cree, Epistar, Osram, Nichia.
2.What are the main products of ECHULIGHT company?
Our main products include LED strip, NEON LED strip and Linear Profile System.
3.Can I have a sample order for LED strip?
Certainly, you are warmly welcome to request sample from us for test and check the product quality.
4.What’s the lead time of our company?
Generally sample order takes 3-7 days and mass production takes about 7-15 days.
5.How do we ship the goods overseas?
Usually, we ship the commodities by express such as DHL, UPS, FedEx and TNT. For bulk orders we ship by air and by sea.
6.Do you accept OEM/ODM orders?
Yes, we accept customized orders and we provide a wide range of customization factors.
7.What kind of guarantee do you offer for the products?
Generally, we offer 2-5 years of warranty for most of our products and special warranty are available for special orders.
8.How does your company deal with the complaints?
All our products are produced under strict quality control system and defective rate will be less than 0.2%.
For all the products bought from us, we offer you free warranty during the guarantee period.
For all claims, no matter how it happens, we solve the problem first for you and then we check about the duty.
