Factory Outlets Low Price Aluminum Linear Lighting Profile System LED Strip Pack ECP-1911K

Linear Lighting System, based on “flexible” and “interconnected” linear light source, intensifies the luminaire structure and optical design and regards lighting as an important factor of interior design, moving back and forth freely along the edge of ceilings, floors and walls. The final effect is provided with creative sense and futuristic sense, endowing a brand-new definition to space.



We have more than 30 high speed automatic encapsulation pipelines and 15 automatic mounting and applied welding pipelines, characterizing complete LED strip production processes, such as LED encapsulation, high speed SMT, automatic welding, and full series of waterproof, with average monthly production capacity of 1.2 million meters. Set up new modern luminaries manufacturing factories so as to realize a whole chain of production processes including precision machining, automatic assembly, color spraying and free customization, with average monthly production capacity of 120,000, in order to deliver high-quality and cost-effective products to customers.



Adheres to independent R&D and sustaining innovation, and our products passed the ISO9001 QMS & ISO14001 EMS certification. All products have passed the testing of the third-party authoritative laboratories and have attained the quality certification from a variety of countries and regions: CE, REACH, ROHS, UL, TUV, LM-80 and so on.


Product Detail

Product Tags

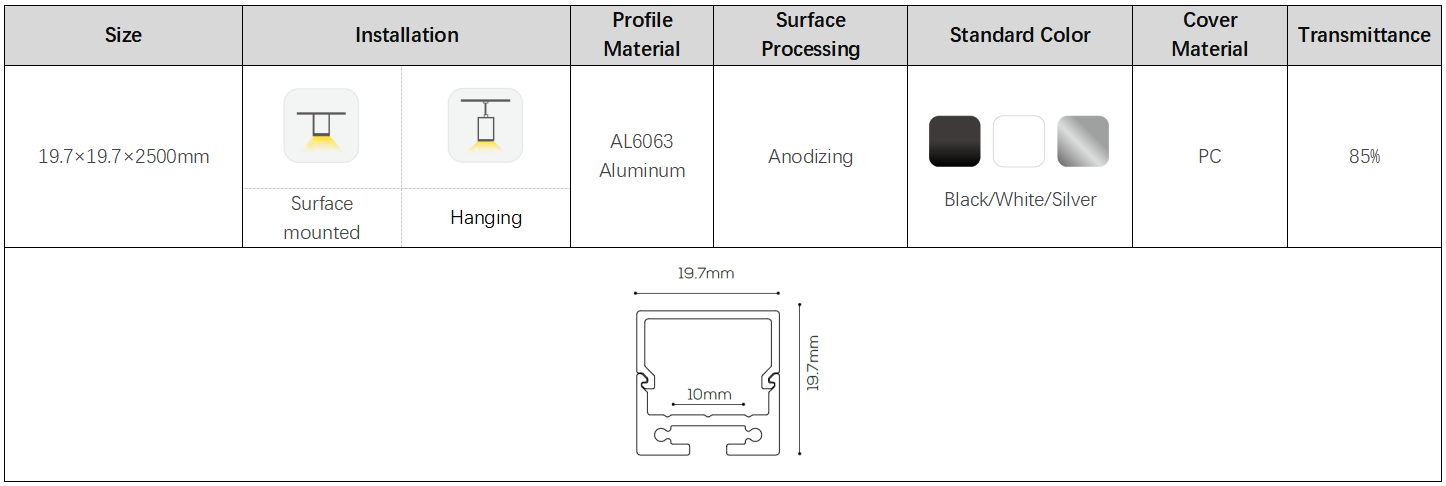

Basic Information

BI

Features

AL6063-T5 aluminum profile with high-quality surface treatment and three optional colors of black, white and silver
Specially designed light source with PC diffusers producing homogenous & soft lighting
Various installation ways: pendant, recessed and surface mounted

Lighting Source


Model

CRI

Lumen

Voltage

Typ. Power

LEDs/m

Size

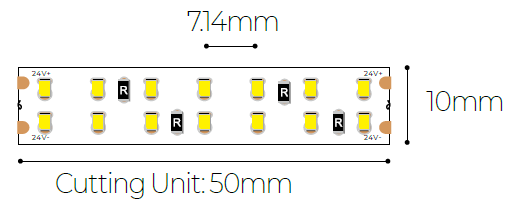

FPC Strip

2216-280-24-10mm

>90

1508LM/m(4000K)

24V

16.2W/m

280LEDs/m

5000x10x1.2mm

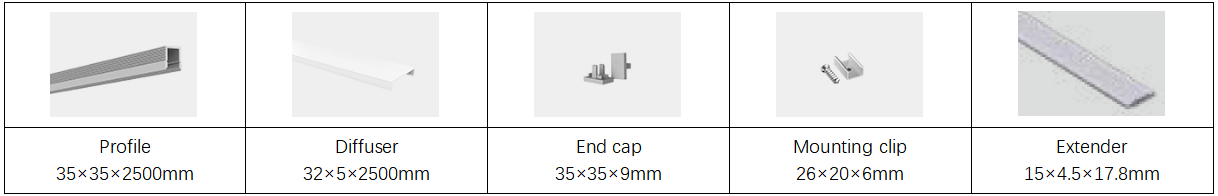

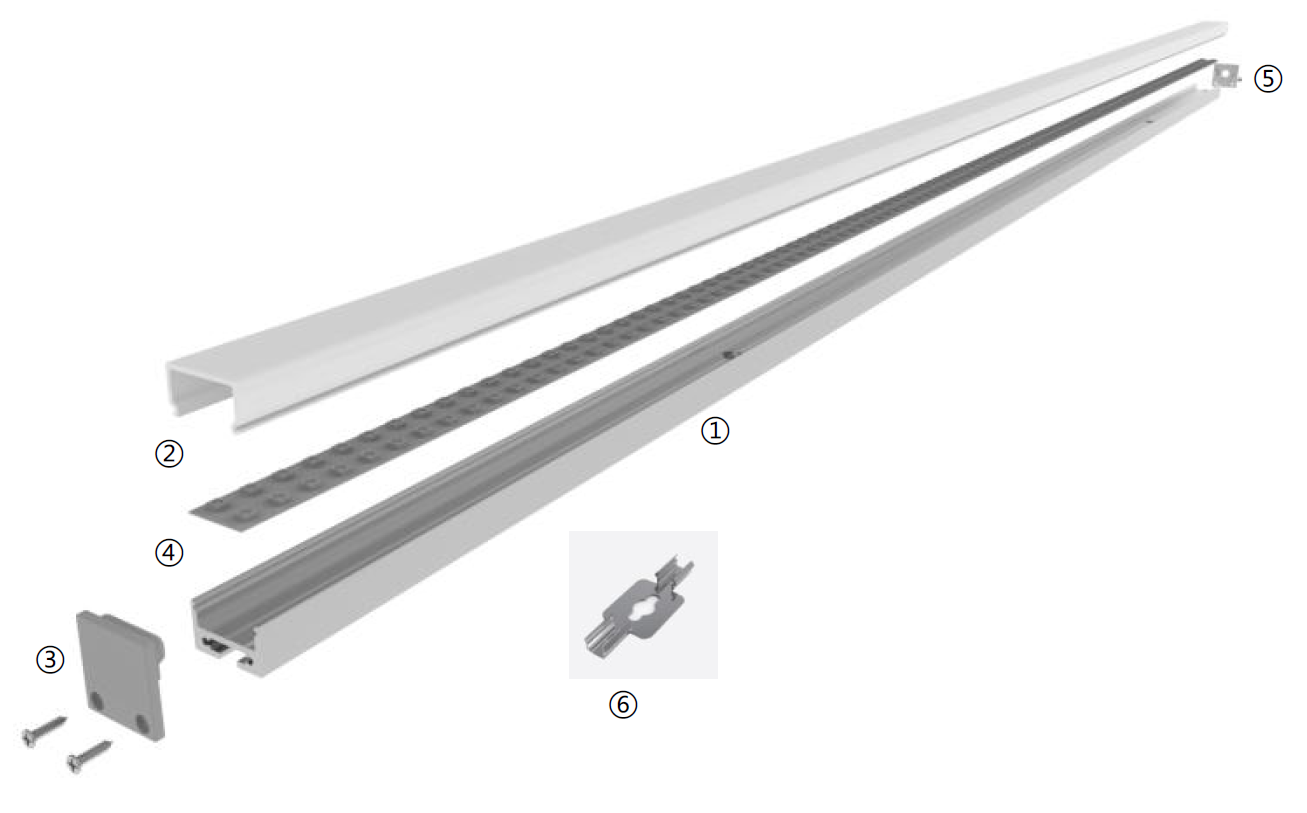

Profile Components

PC

Packing Details

IMAGE1~3
12
IMAGE1~4

Individual Package

      Type Size(mm)    N.W(kg)    G.W(kg)

Content

Packing box 41*27.5*2580 0.8 1.4 1 set(Profile + Diffuser + End cap + Clips)

Bundle Package

       CBM(m3)       Size(mm)      N.W(kg)      G.W(kg)     Qty/bundle
0.035 123*110*2580 9.6 16.8        12 set

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.
Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
