LED STRIP LIGHT

ECHULIGHT Brand Flexible LED strip lights SMD2835

LED Strip, adopting self-encapsulated LED, which passed LM80 and TM30 testing, and high speed SMT, it is shaped by means of automatic mounting to offer different choices of power, color, CCT and CRI. A wide range of protections grades of IP55, IP65 and IP67 can be achieved by adopting silicone integrated extrusion, nano coating and other protection processes. Our flexible led strips passed CE, ROHS, UL and other certifications, applying to indoor and outdoor lighting, furniture, vehicle, advertisement and other supporting ranges. Outdoor led strip lights, led light strips for room, led strip lights for ceiling, led strip lights for bedroom are all included.

Our LED strip provides four series of tape light, including “PRO Series”, “STD Series”, “Toning Series” and “Neon Series”. Customers can select the most suitable led tape in terms of the applications, requirements of functions, projects, and budgets.

Full scene led strip which can help you optimize your products list, reduce the mix color mistake cost, lower the purchasing communication cost, saving the warehouse stock management cost, and better the marketing and sales person product training cost etc.


Product Detail

Product Tags

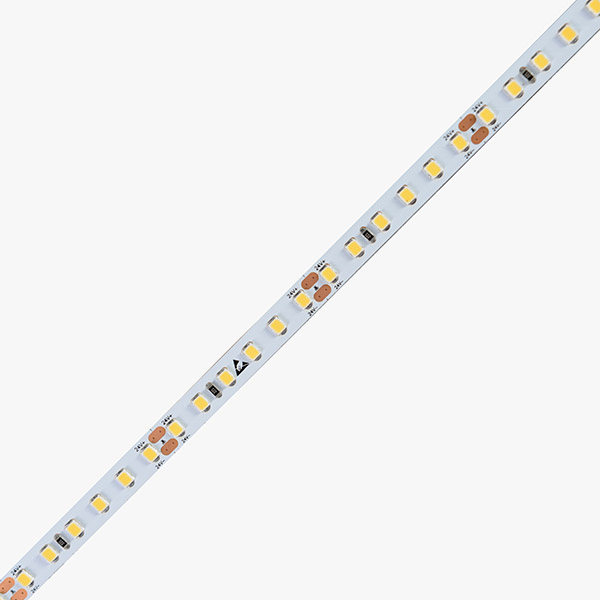

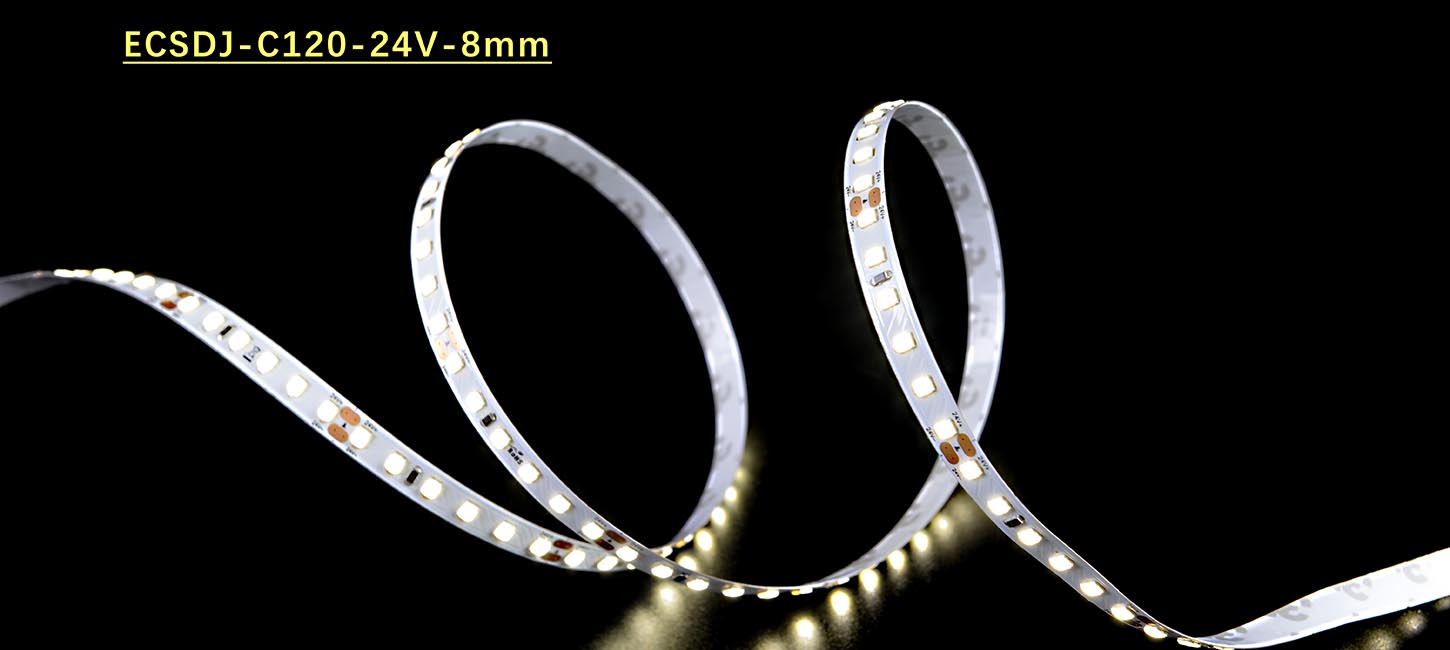

ECSDJ-C120-24V-8mm

ECSDJ-C120-24V-8mm

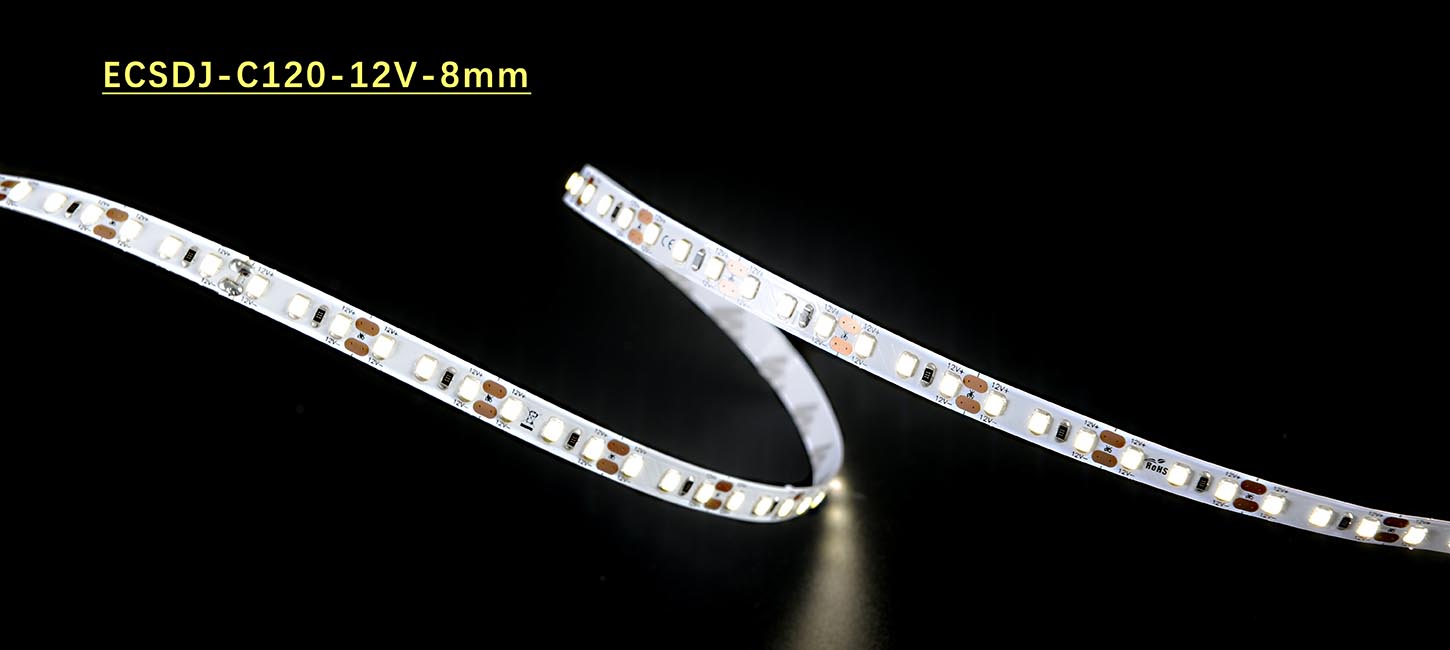

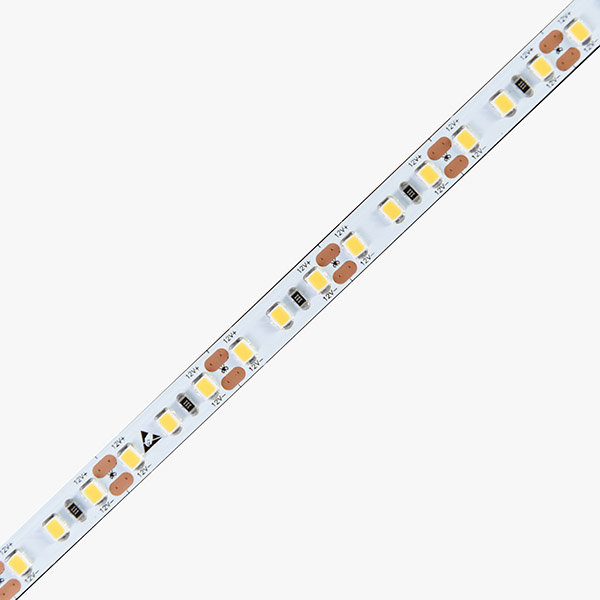

ECSDJ-C120-12V-8mm

ECSDJ-C120-12V-8mm

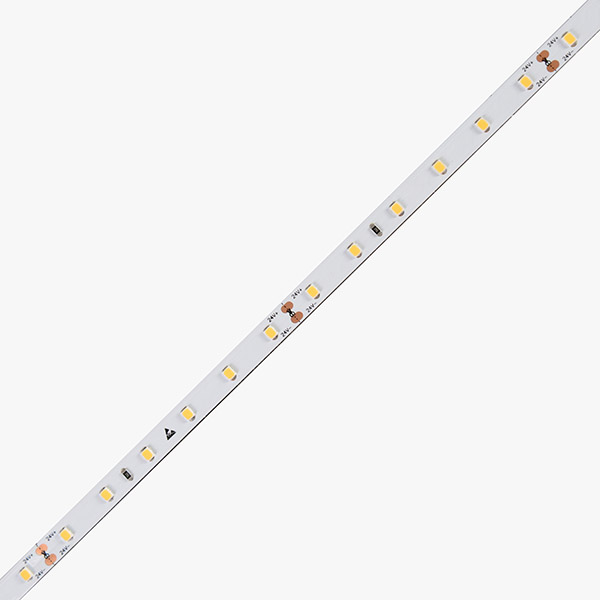

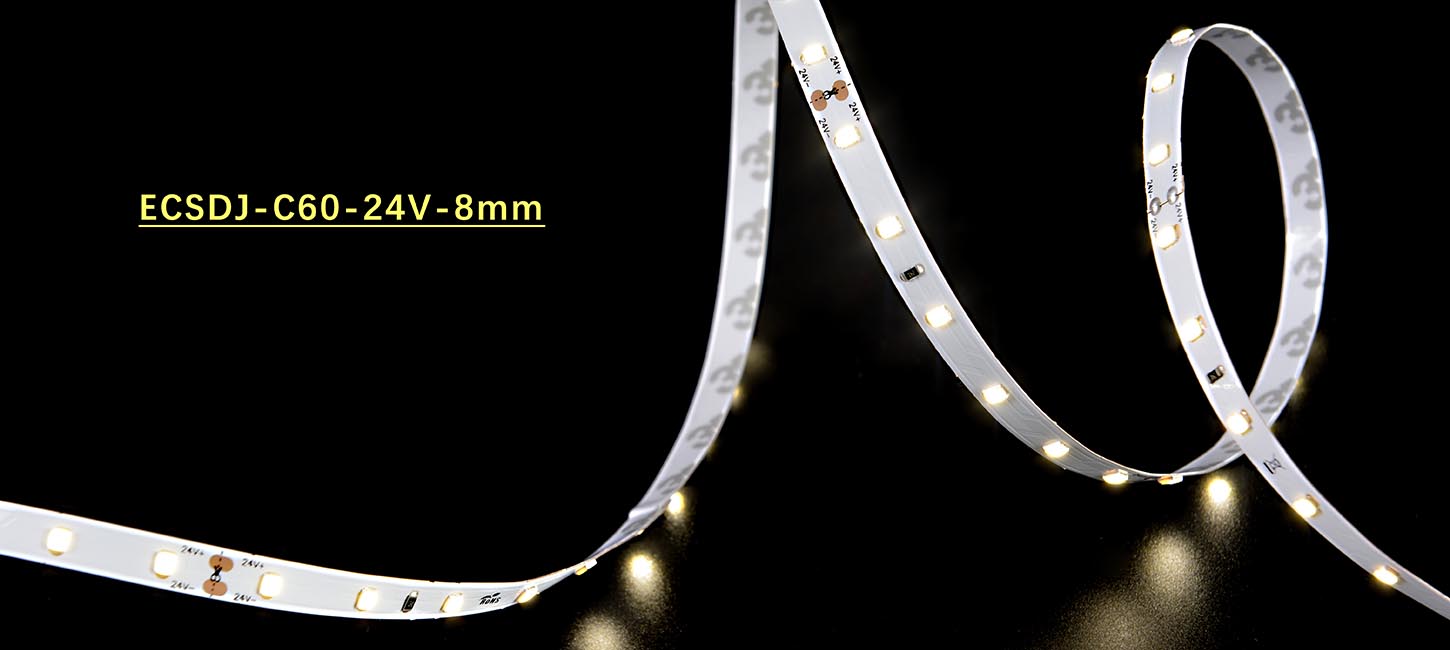

ECSDJ-C60-24V-8mm

ECSDJ-C60-24V-8mm

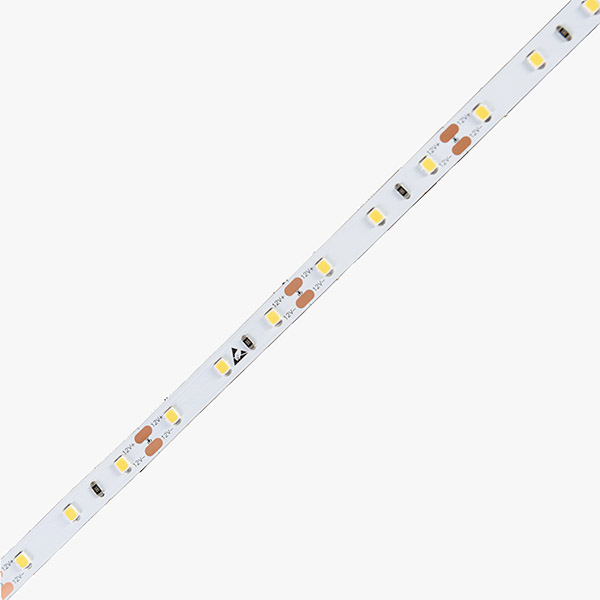

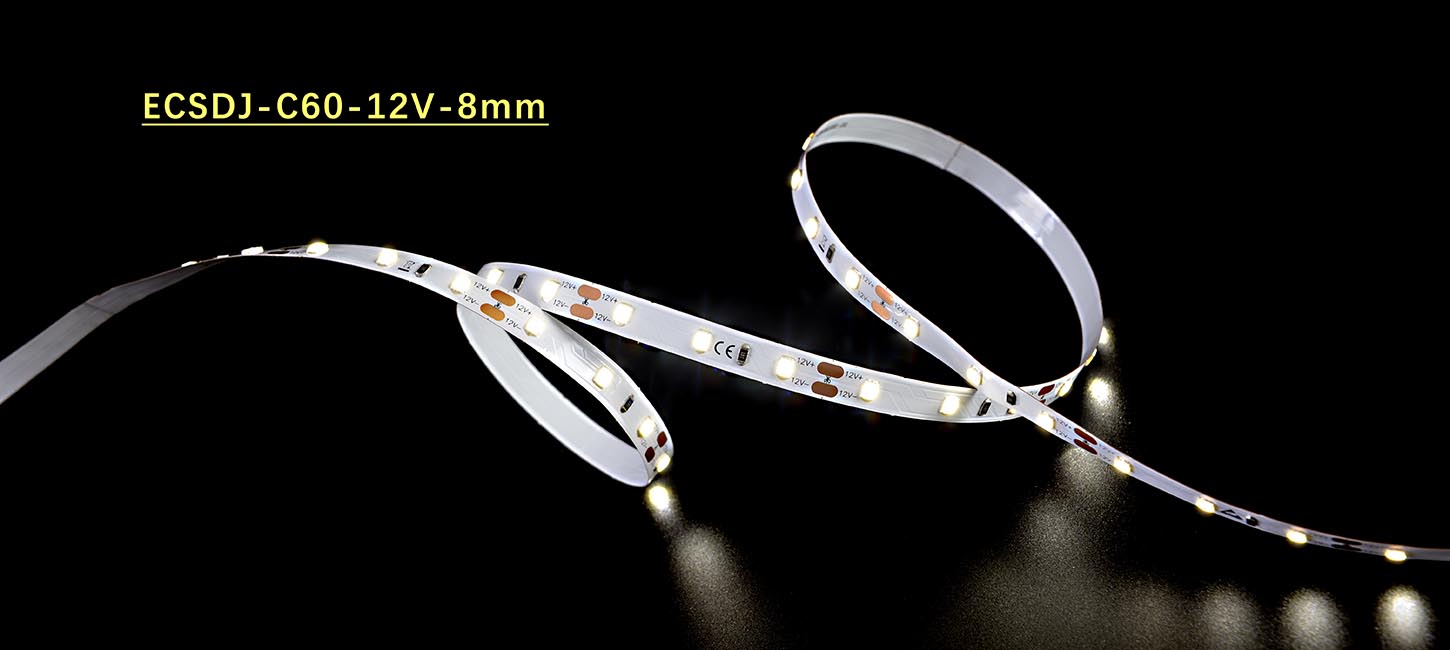

ECSDJ-C60-12V-8mm

ECSDJ-C60-12V-8mm

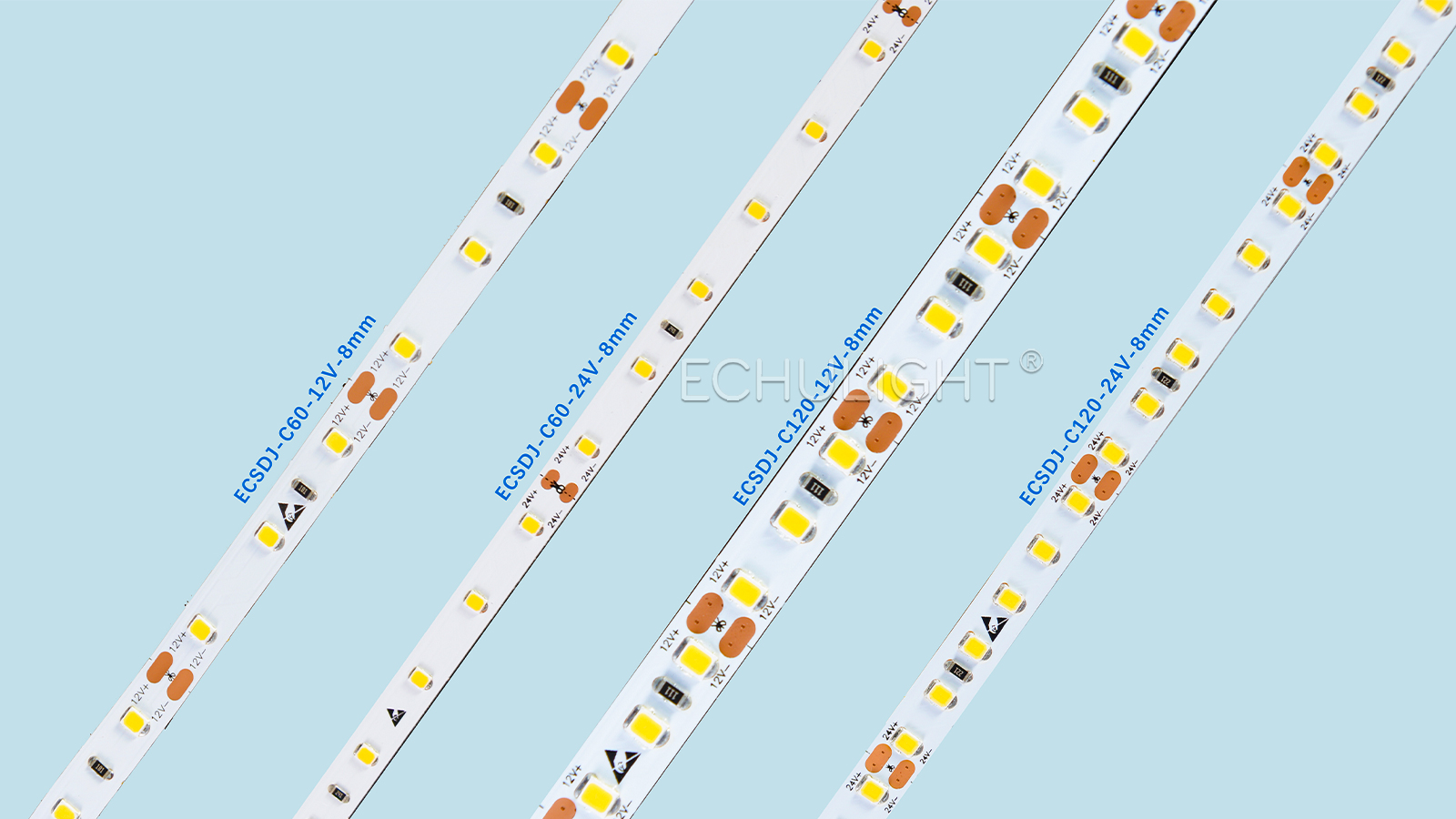

02-1

Products Specification

Model

LEDs/m

DC

(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECSDJ-C60-12V-8mm

60

12

3/50

4.8

585

>80

8

3

ECSDJ-C60-24V-8mm

60

24

3/50

4.8

585

>80

8

3

ECSDJ-C120-12V-8mm

120

12

3/50

9.6

1020

>80

8

3

ECSDJ-C120-24V-8mm

120

24

3/50

9.6

1020

>80

8

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECSDJ-C60-12V-8mm

5000*8*1.8mm

0.4A/m & 2A/5m

4.2W/m

4.8W/m

120°

2oz

ECSDJ-C60-24V-8mm

5000*8*1.8mm

0.2A/m & 1A/5m

4.2W/m

4.8W/m

120°

2oz

ECSDJ-C120-12V-8mm

5000*8*1.8mm

0.8A/m & 4A/5m

8.7W/m

9.6W/m

120°

2oz

ECSDJ-C120-24V-8mm

5000*8*1.8mm

0.4A/m & 2A/5m

8.7W/m

9.6W/m

120°

2oz

a4
a3
a2
a1

CCT/Color Options

1

The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECSDJ-C60-12V-8mm

ECSDJ-C120-12V-8mm

ECSDJ-C60-24V-8mm

ECSDJ-C120-24V-8mm

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.
