LED STRIP LIGHT

ECS-C128-24V-8mm High Luminance Flexible LED Strip SMD2835

Basic parameters
Size 5000×8×1.6mm
Leds/m 128LEDs/m
Cutting unit 8LEDs/62.5mm
Input voltage 24VDC
Input current 0.4A/m&2A/5m
Typ.power 8.7W/m
Max.power 9.6W/m
Beam angle 120°
Copper foil 3OZ


Product Detail

Product Tags

Brief Introduction

LED Strip, adopting self-encapsulated LED, which passed LM80 and TM-30-15 testing, and high speed SMT, it is shaped by means of automatic mounting to offer different choices of power, color, CCT and CRI. A wide range of protections grades of IP55, IP65 and IP67 can be achieved by adopting silicone integrated extrusion, nano coating and other protection processes. Our flexible led strips passed CE, ROHS, UL and other certifications, applying to indoor and outdoor lighting, furniture, vehicle, advertisement and other supporting ranges. Outdoor led strip lights, led light strips for room, led strip lights for ceiling, led strip lights for bedroom are all included.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.
SDCM <2
To provide our clients with best led strip lights, all our led stirp with SDCM <2, no visual difference between the same batch of products
Customer-specific Bin management
Always the same Bin for different batches One bin,2-step, all strip lights are without visual difference forever
LED tape FS CRI>98, as natural as sunshine
The color rendition is as natural as sunshine with the CRI≥95 or full spectrum LEDs;
LED strip Application Guidelines
Different color temperatures for different environments make it possible to choose appropriate LED strip light source as required.
The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

Basic Parameters

Model Size Input Current Typ.Power Max.Power Beam Angle Copper Foil
ECS-C128-24V-8mm 5000×8×1.6mm 0.4A/m&2A/5m 8.7W/m 9.6W/m 120° 3OZ

Note:

1. The above data is based on the testing result of 1 meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

Products Specification

Model LEDs/m DC(v) Preview Cutting Unit
(leds/mm)
Power
(w/m)
FPC Width
(mm)
Warranty
(year)
ECS-C128-24V-8mm 128 24   8/62.5 9.6 8 5

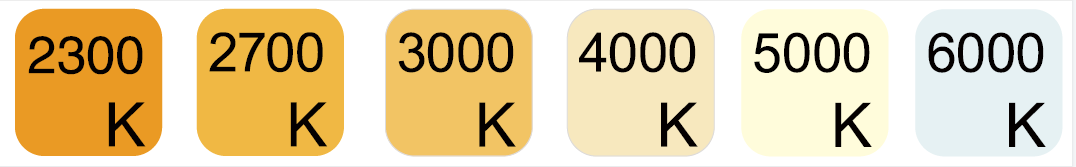

CCT/Color Options

LED STRIP SMD2835

IP Process Options

led rgb strip

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Installation Instructions

led rgb strip  light

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

※ Do not fold it in case any damage of LED beads.

※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.

Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.

※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
