Brief Introduction

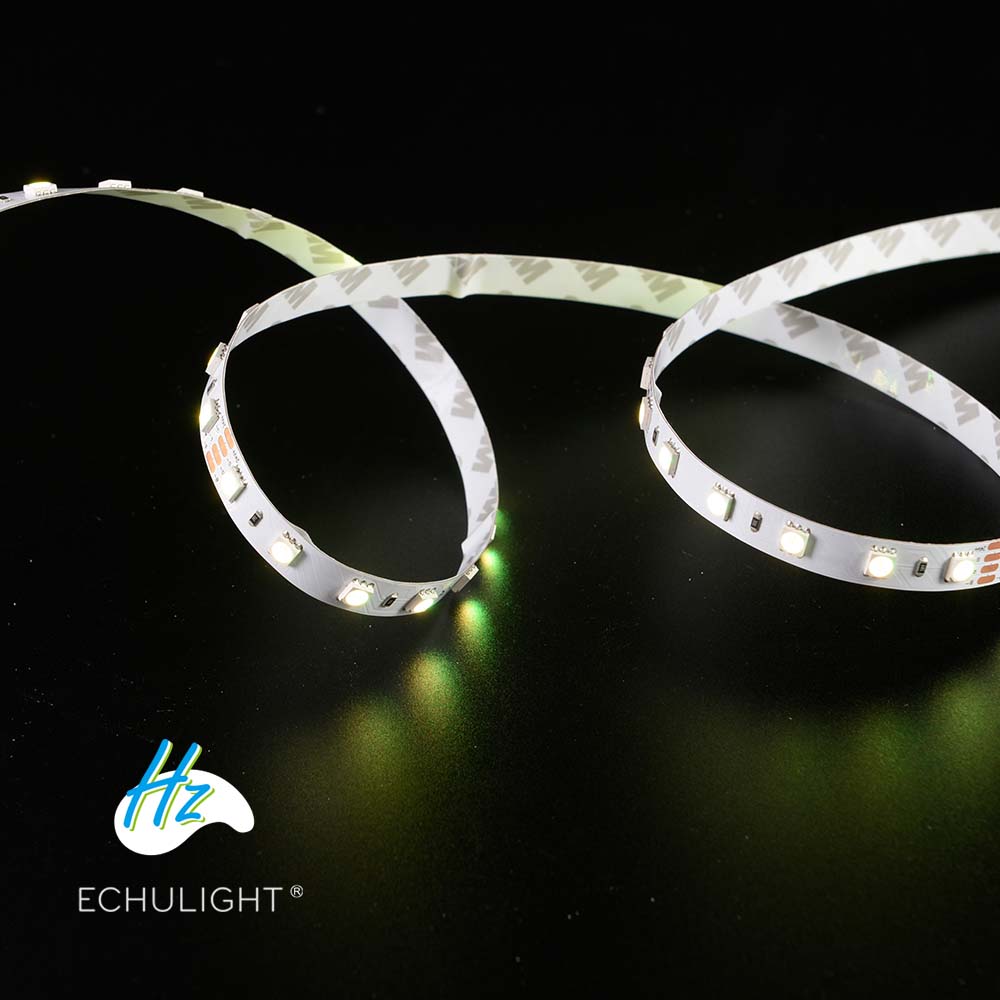

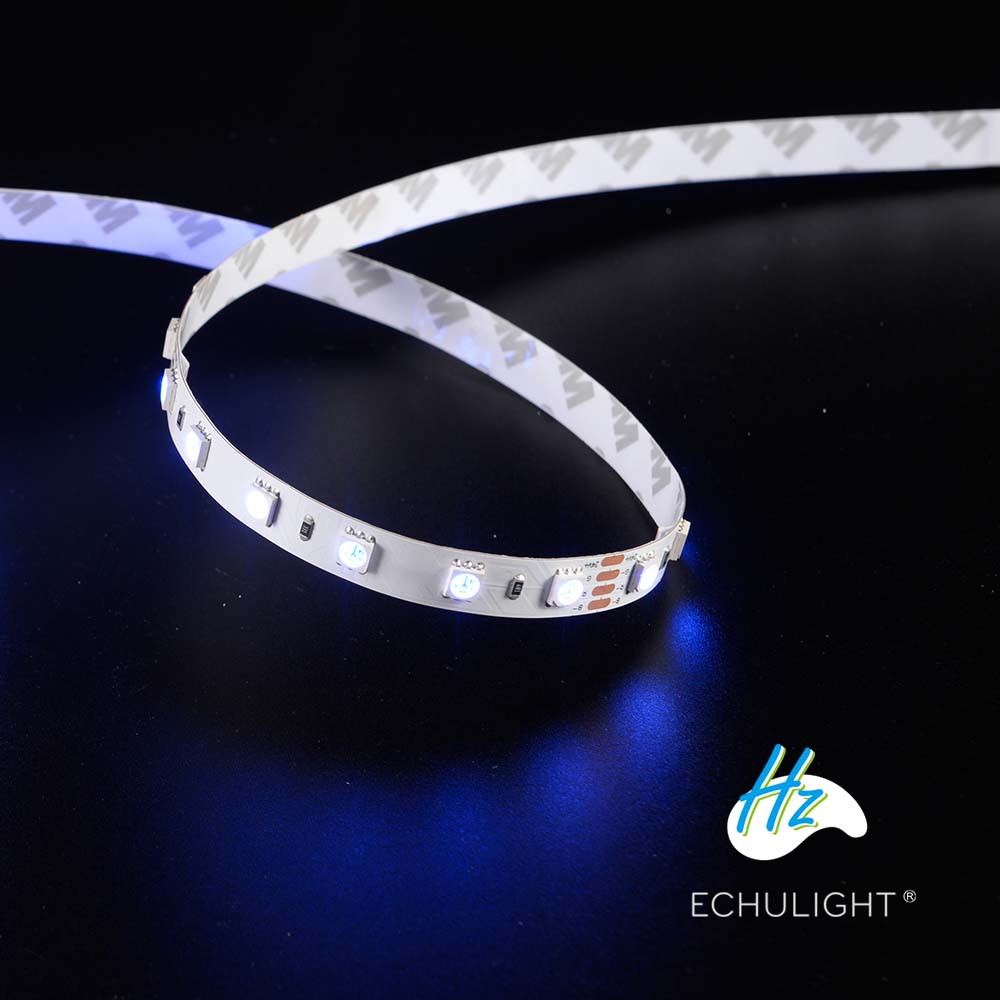

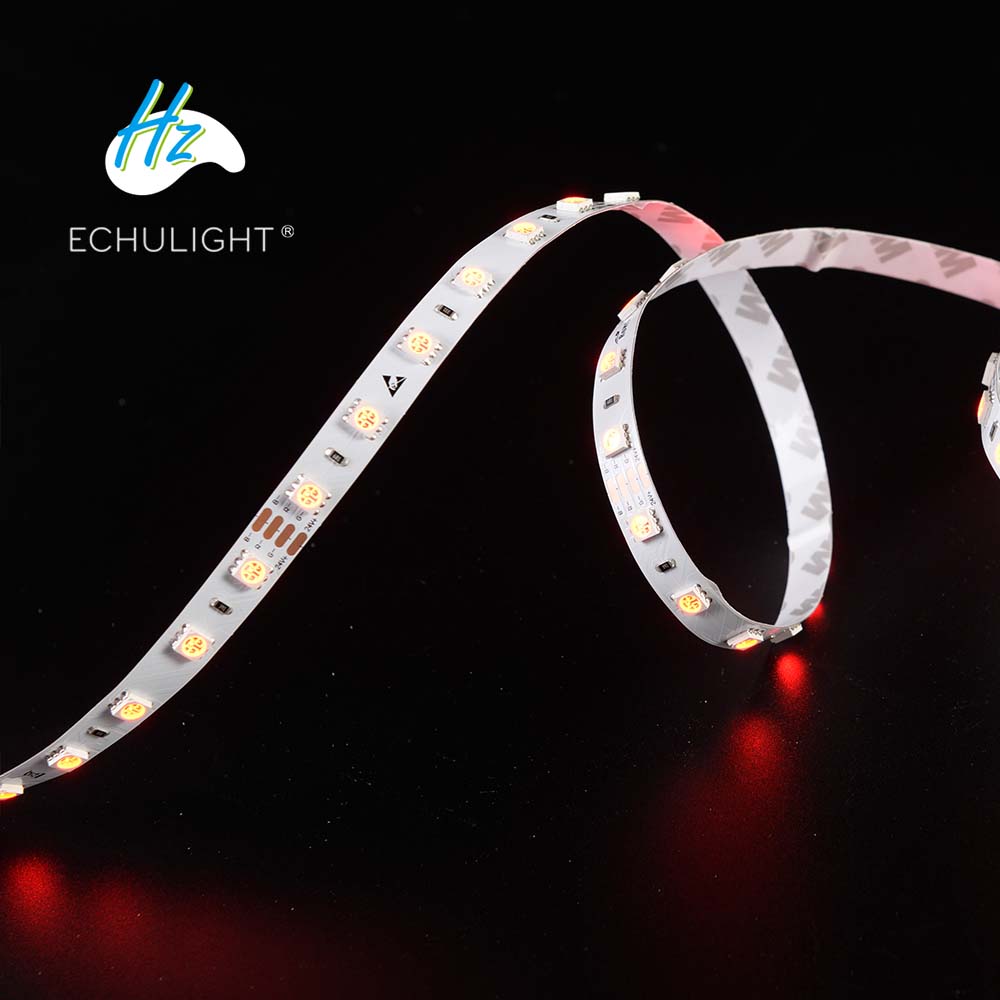

Toning series of led strip can meet the requirements of CCT changing in the same space during different periods for different users. It contains toning LED strip with dual white light, the RGB LED strip features color changing, the RGBW LED strip, and the digital LED strip features dynamic color changing. The series is widely compatible with all kinds of dimming &toning controllers. Toning series is widely used for residential space, showcasing space, entertainment space, bar, KTV, and hotel, to achieve decorative lighting, atmosphere creation and scenarios changing in holidays. Such as led light strips for room, led strip lights for ceiling, led strip lights for bedroom, RGB led strip, hue light strip, RGB light strip, RGB strip, RGBW led strip, rgbic led strip, color changing led strip lights, multi colored led strip lights etc.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.

ECS-B60RGB-24V-10mm-01

ECS-B60RGB-24V-10mm-02

ECS-B60RGB-24V-10mm-03

Features and advantages of Silicone Neon LED Strip

A.High substitutability
Silicone neon strip lights featuring high substitutability, all neon strip can achieve various lighting effects such as white light, RGB and digital toning, it can replace the neon tube, guardrail tube, rainbow tube and so on for signage lighting/architectural lighting/landscape lighting.
B.High thermal conductivity
High thermal conductivity, the thermal conductivity of silicone is 0.27W/MK, better than the “0.14W/MK” of PVC material, and the light strip features longer effective heat dissipation life.
C.Resistance to UV
Neon light strips featuring resistance to UV, the extrusion silicone can be used outdoor environment for long-term exposure to direct sunlight, no yellowing and aging over 5 years.
D.Flame-retardant and environmental
Neon strip is environmental and non-toxic, with high ignition point, non-flammable in needle-flame burning, and without irritating toxic gases volatilizing (not like PVC), which is more secure.
E.Resistance to corrosive gases
Neon led strip lights are resistance to corrosive gases, include chlorine, sulfur dioxide, hydrogen sulfide, nitrogen dioxide and so on, the silicone neon strip with long life span can be used for severe environment
F.Dust proof
Avoid dust into the neon strip, and featuring reliable sealing, up to IP6X, beautiful appearance, wide range of applications and long-life span.
G.Uniform Lighting
Uniform Lighting, dot-free, direct-view surface, used for highly reflective material, featuring a glossy environment free from dazzling.
H.High light transmittance
Neon light strips with high light transmittance up to 90%, can meet the requirements of high lumens output, and it’s not only used for decoration but also lighting.
I.Good flexibility
Reliable structure with good flexibility, adopting solid silicone, customizing internal structure and external form by mould. Neon led strip can be bent and twisted, suitable for various shapes, with resistance to tear and draw, it is not easy to damage and deform with good flexibility.
J.Outstanding weather resistance
Outstanding weather resistance, storing in the environment between -50℃ and +150℃ , neon strip can maintain the normal-soft state, without embrittlement, deformation, softening and aging. And using in the environment between -20℃ and +45℃ , neon led strip lights can operate normally resisting extremely cold and high heat.
K.Resistance to corrosion
Neon light strips featuring resistance to corrosion, the silicone can resist corrosion of normal salt, alkali and acid, can be used for special environments such as beach, yacht, chemical industry, petroleum, mine and laboratory.
L.Good protective performance
Good protective performance，the main body of neon led strip and standard outlet end cap can be used in the environment up to IP67 standard, and can pass the laboratory test standards of IP68

Basic Parameters

Note:

1. The above data is based on the testing result of 1meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

CCT/Color Options

Light Distribution

*Note: The above date is based on the color temperature of 4000K monochrome.

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Installation Instructions

Installation of clips
1. Use screws to fix the clips on the mounting position.(*3 clips can be used for 1meter)
Installation of carriers
When installing the LED Strip, install it from both ends at the same time, installation from one end only may cause damage to the LED strip.			If the LED strip exceeds 2meters, it’s recommended to install by two persons.
Use a tool to disassemble the LED strip carefully, and do not pull the LED strip directly.			If the LED strip exceeds 2meters, it’s recommended to disassemble by two persons.

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

System Solutions

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.※ Do not fold it in case any damage of LED beads.※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited. ※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage. ※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃. Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%. ※ Please be careful during operation. Do not touch the AC power supply in case of electric shock. ※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product. ※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
	No Stretching	No Trampling
